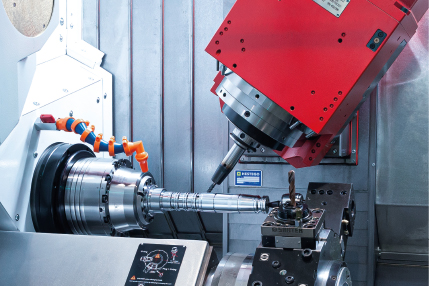

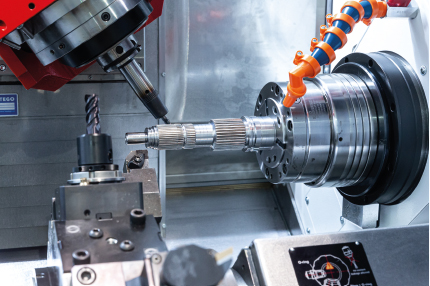

The HYPERTURN 65 POWERMILL G2 is a sophisticated Universal Machining Center from EMCO, engineered to perform complex mill-turn operations with a single setup, drastically reducing cycle times and improving overall productivity. Its core equipment includes a powerful main and counter spindle, a dedicated milling spindle, and continuous B and Y axes, providing exceptional flexibility for machining complex geometries. The machine is built with a highly stable bed design for maximum oscillation damping and features liquid-cooled spindles for optimum thermostability, ensuring excellent repeatability and precision over long production runs.

Key performance specifications include a maximum turning diameter of 500 mm, bar diameter capacity of 65 mm (optional 102 mm), and rapid spindle speeds up to 5000 U/min for the turning spindles and 12,000 rpm for the milling spindle. Tool management is highly automated with the option for a 40-, 80-, or 120-slot chain-type tool magazine, supported by two tool systems usable on both the main and counter spindles. The machine integrates the latest Sinumerik ONE control system, which includes the EMCONNECT Digital Process Assistant, streamlining digital workflows and shopfloor management. Its capability for procedures like Gear Skiving further highlights its multi-tasking versatility, making it the ideal solution for high-volume, high-precision component manufacturing.
