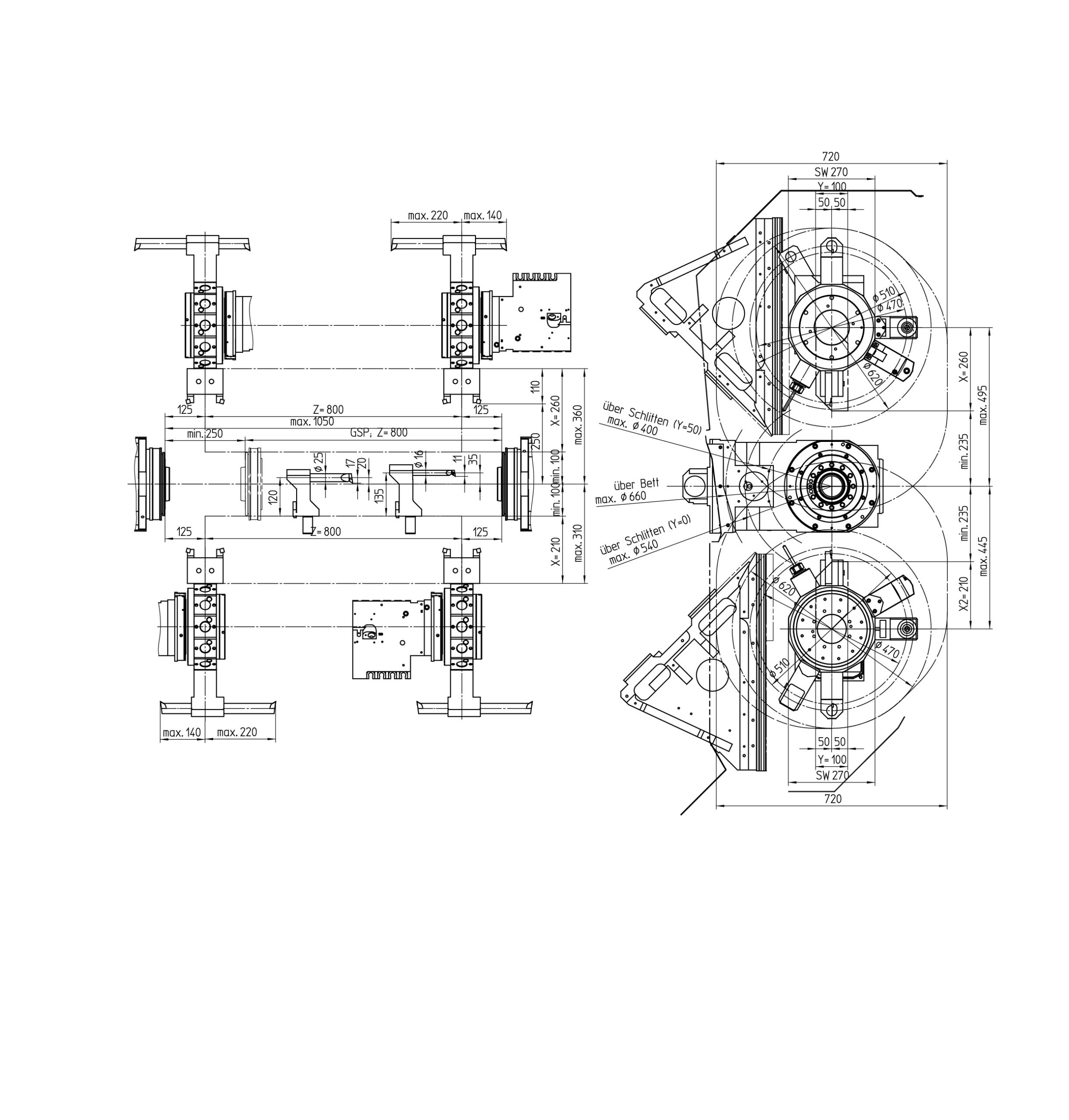

The HYPERTURN 65 from EMCO’s HYPERTURN Series is a sophisticated CNC turning-milling center built in the Heart of Europe for maximum productivity and component complexity. Its core architecture is based on two synchronized main and counter spindles, both featuring high performance and water-cooled motors (up to 29 kW power and 250 Nm torque, at speeds up to 5000 rpm). This twin-spindle setup allows for efficient front and back machining in one clamping. The machine’s exceptional flexibility is provided by its configuration options, including up to three 12-position tool turrets, which can accommodate up to 36 driven tools.

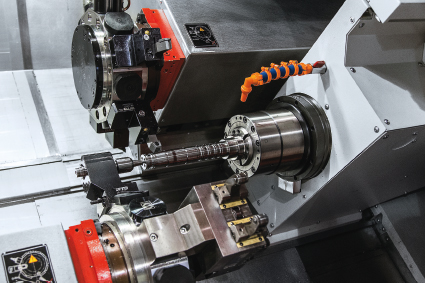

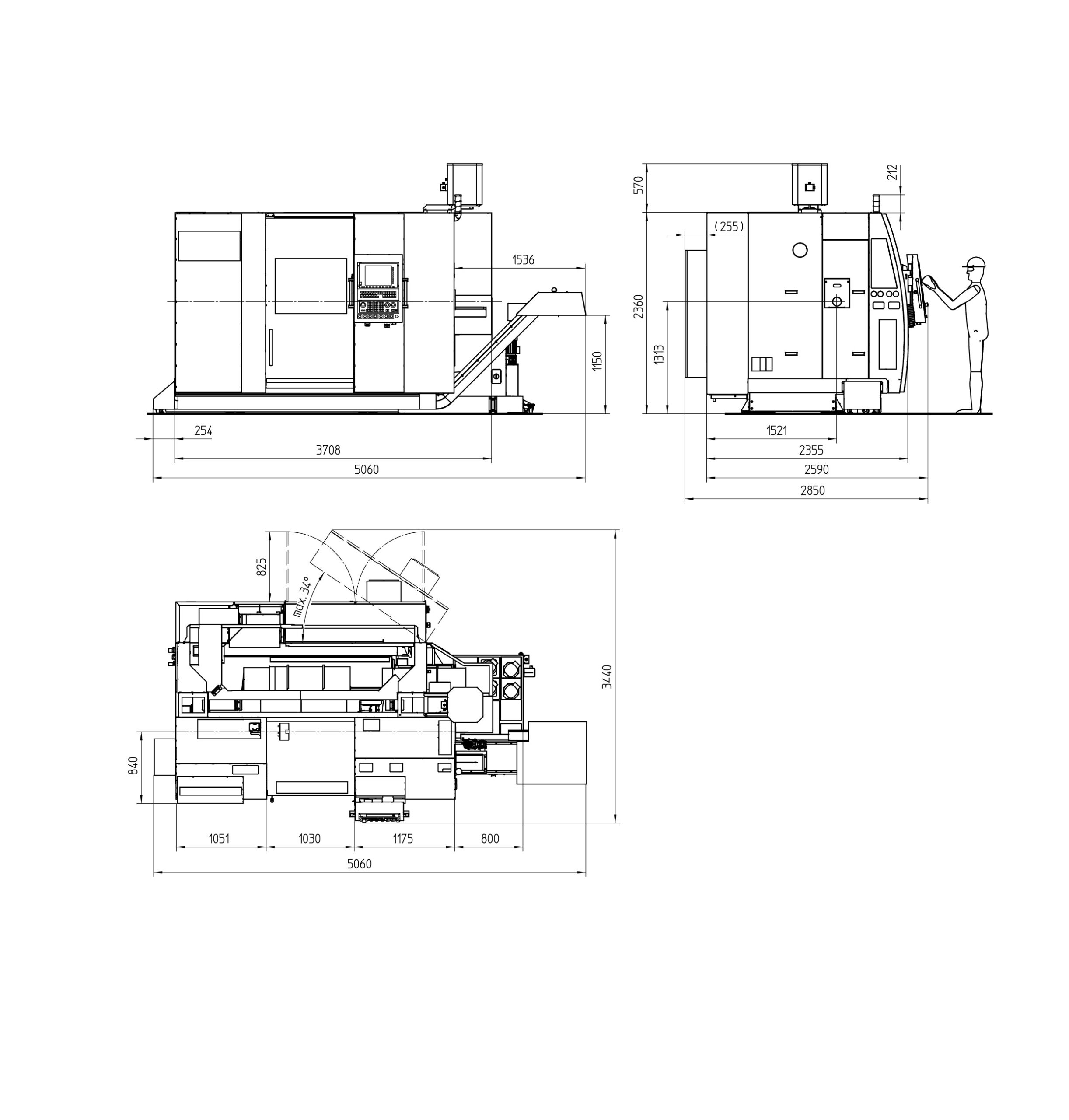

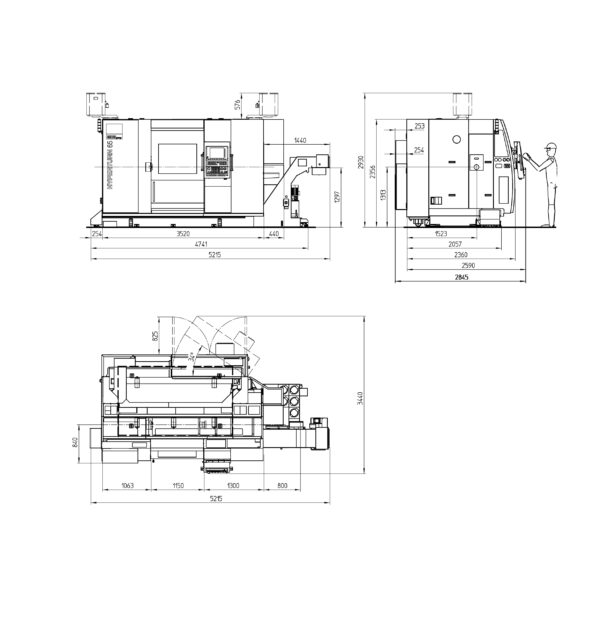

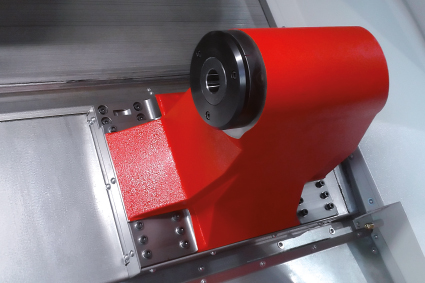

Key highlights include the availability of up to three independent Y-axes for processing complex turned and milled parts, and the option for BMT-turrets with a direct drive for milling speeds up to 12000 rpm. The HYPERTURN 65 supports bar diameters up to 95 mm and offers a max turning diameter of 500 mm. Available in different bed lengths (spindle nose distances of 1050 mm or 1300 mm), the machine can be configured as a DUOTURN (two turrets) or a TRIPLETURN (three turrets) with large X-axis strokes. Control is handled by the highest-performance systems like Sinumerik ONE or FANUC 31iB, ensuring the highest drive and control performance and compatibility with digital process assistants like EMCONNECT. Options like NC-tailstocks, steady rests, and EMCO’s automated bar or gantry loaders ensure fast, chatter-free processing of long shafts and efficient, fully automated operation.
