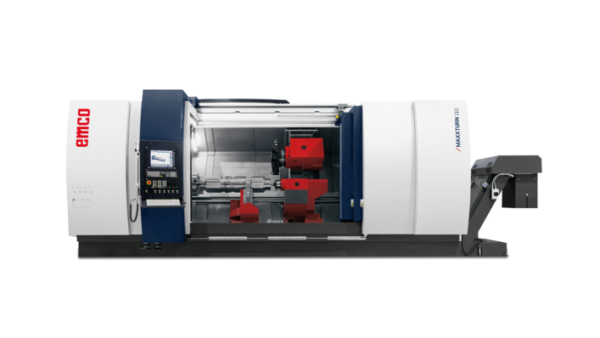

The MAXXTURN 110 stands as a professional-grade horizontal turning center within the versatile EMCO MAXXTURN series, designed specifically to tackle challenging turning and milling tasks in industrial environments. Its construction emphasizes high thermostability and precise machining, ensuring consistent quality across long production runs. A standout feature is the integrated Y-axis, which is directly implemented into the machine’s construction, offering long travel for complex off-center operations and turning the machine into a powerful multitasking solution.
The machine’s capacity is highly adaptable, offering three different bed lengths, allowing for a maximum part length of 3500 mm (with tailstock) and a max turning diameter of 680 mm. Power is delivered by a robust main spindle with a large 110 mm bore hole and a maximum drive power of up to 52 kW, delivering a maximum torque of up to 3400 Nm. For tool management, the MAXXTURN 110 utilizes a powerful 12-time VDI 50 radial turret with driven tools- featuring a speed of 4000 rpm. Supported by state-of-the-art control technology from Siemens or Fanuc, which allows for simple dialog-supported programming, and high rapid motion speeds in the Z-axis (up to 30 m/min), the MAXXTURN 110 is engineered for efficient material removal and high production throughput. It also includes an automatic tailstock and features a very compact machine layout relative to its capabilities.
The EMCO MAXXTURN 110 is a highly capable CNC Universal Turning Center that offers a professional, industrial solution for turning and milling complex shaft and chuck parts. Featuring three available bed lengths up to 3500 mm, an integrated Y-axis for powerful off-center machining, and a 12-station VDI 50 radial turret with driven tools, this machine combines high thermostability, high rapid motion speeds, and a compact layout for maximized productivity.
