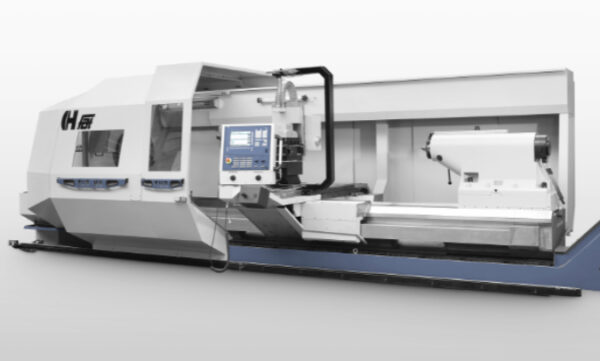

The FAT HACO Tur MN 1150-1350-1550 series represents a proven and durable line of heavy CNC flat-bed lathes engineered for the precise turning of substantial components. These machines are defined by their capacity to handle parts with a swing over the bed up to 1550 mm and a massive maximum weight of 12-000 kg (between centers without steadies). The exceptional structural stability is ensured by a wide bed (1020 mm or 1200 mm) and robust construction, providing the necessary rigidity for accurate processing of heavy workpieces.
Powering these operations is a main drive motor with 41 kW (S6), delivering a massive maximum turning torque of 8200 Nm through a two-range spindle gearbox (speeds ranging from 2 to 1000 rpm). The turret features a Multifix Size D2 QC Toolpost for quick and reliable tool changes. Key specifications include large spindle bore options ranging from 140 mm up to 450 mm, customizable distance between centers from 3000 mm up to 16-000 mm, and rapid travel speeds up to 10 m-min in the X-axis. The Tur MN series is a reliable and high-capacity solution for the most demanding large-scale turning requirements.
The FAT HACO Tur MN 1150-1350-1550 series is a group of heavy-duty CNC lathes designed for machining large, heavy elements up to 1550 mm in diameter. Characterized by exceptional structural stability and precision, these durable machines handle maximum workpiece weights of 12-000 kg between centers and offer spindle bores up to 450 mm, making them ideal for challenging large-scale turning applications.
