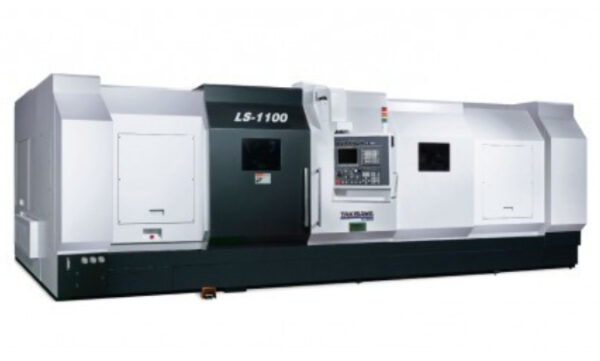

The LS-1100 L30 is part of the JTEKT Takisawa LS Series of Large, Superduty Boxway Lathes, specifically engineered to handle the most demanding turning applications for large and long parts. Its robust construction includes an extra heavy-duty CNC gearbox spindle and proven box guideways throughout all axes, which are essential for maintaining tight tolerances and superior surface finishes during heavy, continuous cutting. The machine offers an impressive maximum turning length of 118.6 inches (3,014 mm) and a maximum turning diameter of 35.4 inches (900 mm).

The spindle is designed for power and stability, featuring a large A2-20 nose, a substantial 32-inch chuck, and a maximum spindle speed of 900 RPM. Power is supplied by a robust 60 HP (45 kW) drive motor for 30-minute ratings, with 50 HP continuous power, ensuring sufficient torque for cutting challenging materials. The LS-1100 L30 is built to perform equally well across a spectrum of materials, including ferrous steel, non-ferrous aluminum, and difficult high-temp alloys like Titanium and Stainless Steel. With an extensive 122-inch (3,100 mm) Z-axis travel and an optional 10-inch bar work capacity, this machine is the definitive platform for heavy turning, offering maximum production and flexibility at exceptional value.
