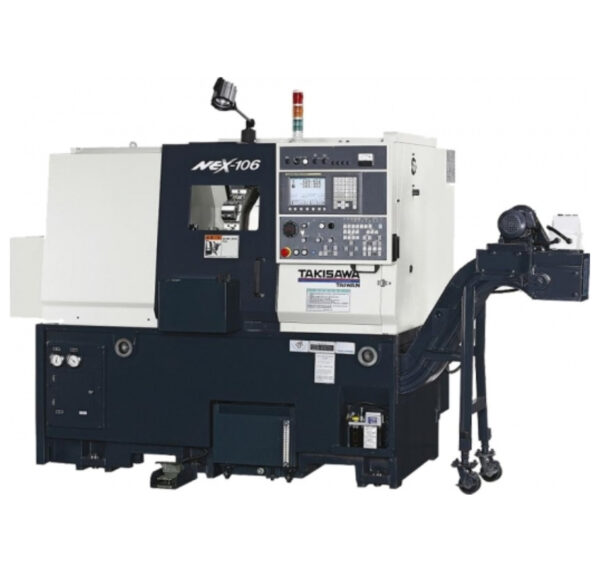

The NEX-106 Horizontal Turning Center, part of the NEX series by JTEKT Takisawa Taiwan, is engineered to provide maximum production and flexibility at an exceptional value. This 2-axis machine utilizes a belt-driven spindle and robust linear guideway construction to ensure both rapid movement and high-precision cutting. Designed for high-speed applications, the spindle achieves a top speed of 5,000 RPM and is driven by a 10 HP (7.5 kW) motor.

With a 6-inch chuck and a max turning diameter of 9.45 inches (240 mm) and a max turning length of 13.8 inches (350 mm), the NEX-106 is ideally sized for small to medium-sized components. Its rapid indexing capabilities contribute to increased uptime and productivity. The machine’s consistent specifications across ferrous, non-ferrous, and high-temperature alloys, including a 1.7-inch (43 mm) bar work capacity, highlight its versatility for job shops and production environments processing a wide range of materials.
