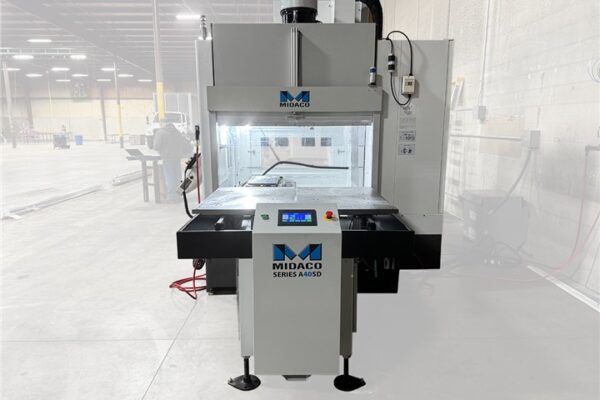

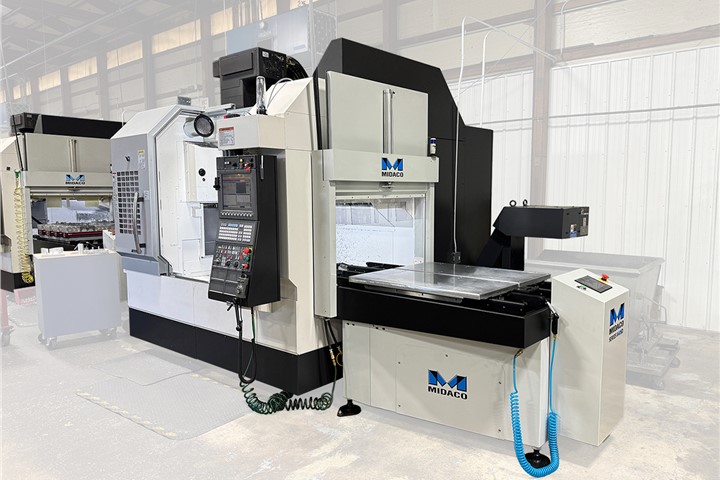

The Midaco A4020SD Pallet Changer with Aluminum Pallets is a premier automation solution engineered to significantly enhance the efficiency and productivity of Vertical Machining Centers. This system virtually eliminates spindle downtime by allowing operators to safely set up the next job on an external pallet while the machine is actively performing a cutting cycle on the internal pallet. The standard package includes two lightweight, yet robust 40 inch by 19 inch by 1-1-2 inch cast aluminum pallets.

The core component is the Series 30A pneumatic receiver, which provides reliable clamping and offers a capacity of 1000 LB (454 kgs) with the weight evenly distributed. An optional Receiver Upgrade is available for a heavier 2000 LB (908 kgs) capacity. Pallet exchange is handled seamlessly by the Series 40 End Load Shuttle unit, which integrates a crucial Automatic Door and an indicator lamp for smooth, protected operation. The A4020SD is designed and manufactured with a strong commitment to quality, and is fully compatible with modern factory automation, featuring Robot-Cobot Ready options for integrating robotic machine tending. This combination of speed, capacity, and automation readiness makes the Midaco A4020SD a leader in reducing operational costs and increasing machining center output.
