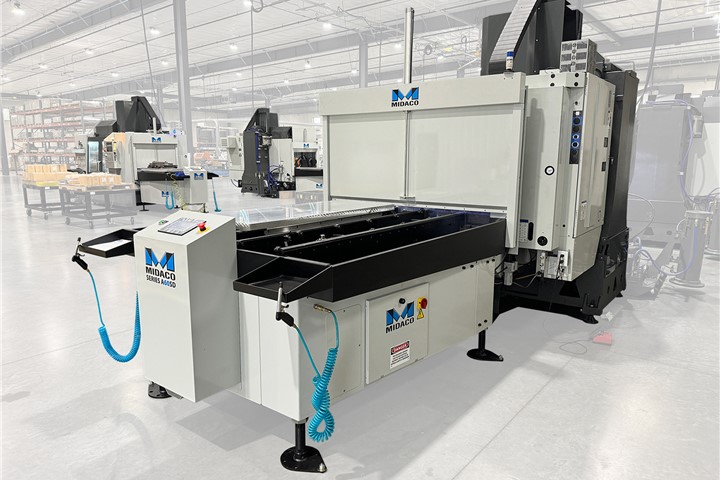

The MIDACO A6040SD Pallet Changer with Aluminum Pallets is a robust and efficient automation solution engineered to transform productivity on compatible machining centers. This system’s primary function is to virtually eliminate non-cutting time, allowing operators to safely set up the next job on an external pallet while the machine is actively cutting, thereby realizing near-continuous spindle operation.

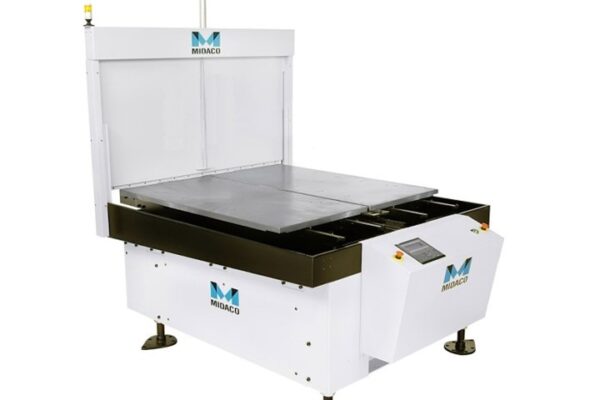

The A6040SD unit is an end-load shuttle system that includes two 60 inch by 39 inch (1524 mm x 990 mm) precision-machined, cast aluminum pallets. The robust pneumatic receiver is rated for a substantial maximum capacity of 4-000 lbs (1-816 kgs), ensuring stability and accuracy for large or heavy workpieces. The system comes complete with the End Load Shuttle unit itself, which features an Automatic Door and indicator lamp, integrating smoothly with the VMC’s controls to manage the pallet exchange sequence. By converting manual material handling into a fast, automated process, the A6040SD is a critical investment for shops looking to achieve higher production volumes and a rapid return on investment.
