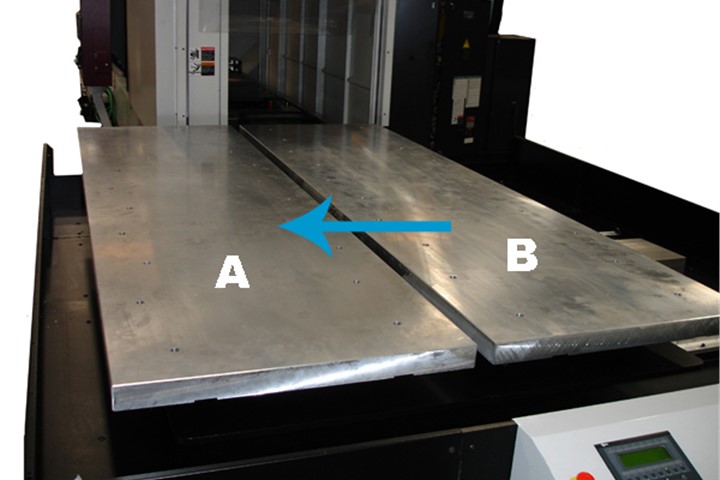

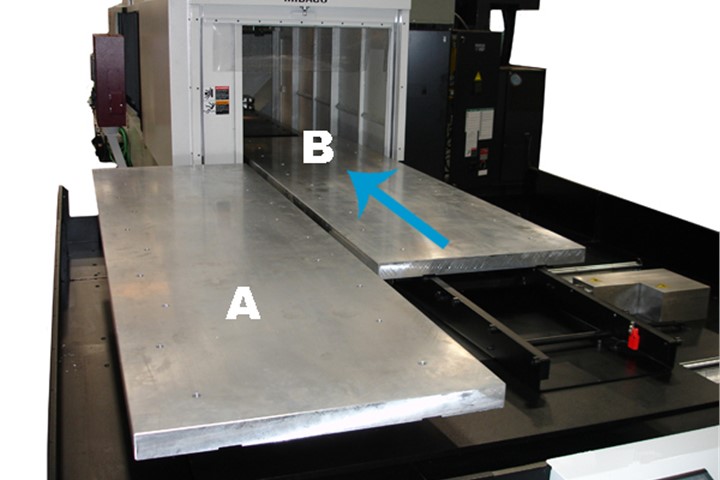

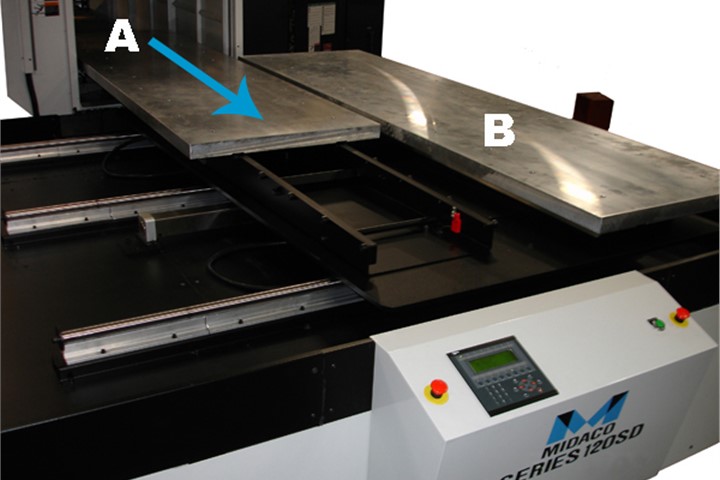

The A6030SD Y-Axis Shift Pallet Changer from MIDACO is a robust automation solution engineered to dramatically boost spindle utilization and overall output from your Vertical Machining Center. This system utilizes a Y-Axis Shift mechanism, meaning the external shuttle moves along the Y-axis to align and transfer pallets, optimizing integration for a wide range of VMCs.

The core of the system is the Series 52A Pneumatic Receiver, featuring a substantial 4-000 lb (1-816 kg) load capacity (weight evenly distributed) and a dedicated air blast to ensure accurate pallet seating and chip removal during the exchange cycle. The package includes two large 60 inch by 30 inch (1-524 mm by 762 mm) cast aluminum pallets, which are end-loaded via the Series 60 End Load Shuttle unit. This shuttle is equipped with a fully automatic door and indicator lamp for seamless, safe operation. By allowing operators to set up the next job while the current part is being machined, the A6030SDY virtually eliminates spindle downtime, offering a clear and quantifiable path to greater efficiency and profitability.
