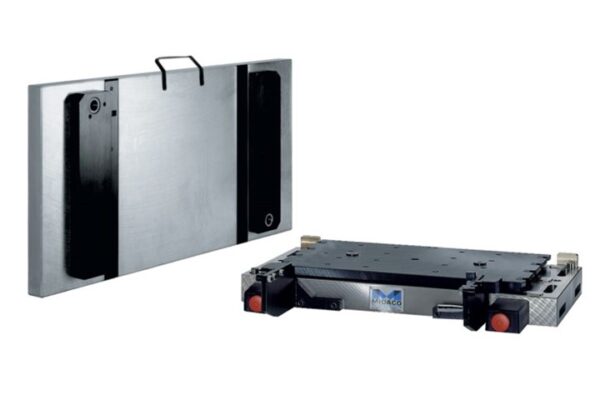

The Midaco M4020FLR/2P Pallet Changer System Less Shuttle provides a foundational manual automation solution for Vertical Machining Centers, allowing shops to significantly increase operational efficiency without the need for a powered shuttle mechanism. This system is centered around a precise Series 30FL Pneumatic Receiver with a standard 1-000 lb (454 kg) capacity—expandable to 2-000 lbs—that ensures secure, repeatable pallet clamping inside the machine enclosure.

The package includes two 40 inch by 20 inch by $1\ 1/2$ inch (1-016 mm by 508 mm by 38.1 mm) cast aluminum pallets, which allow operators to prepare and inspect a new job safely outside the machining area. This capability minimizes tool change time by eliminating the need to tear down one job and set up the next while the spindle is idle, thus maximizing machine utilization. The system also includes a Pallet Clamp Confirmation Safety Switch to guarantee the pallet is correctly seated and clamped before the machine cycle can begin. The M4020FLR/2P is an excellent entry point into quick-change workholding, directly contributing to reduced cycle times and increased overall production throughput.
