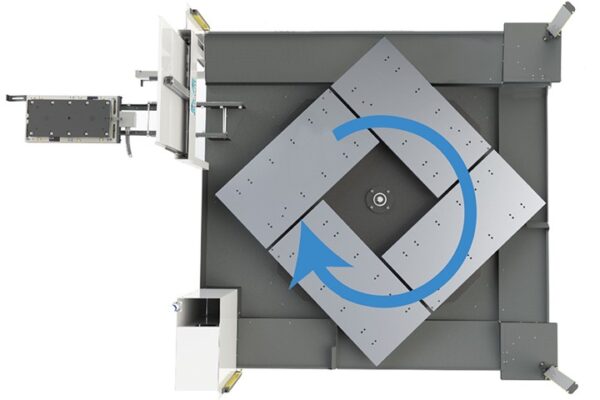

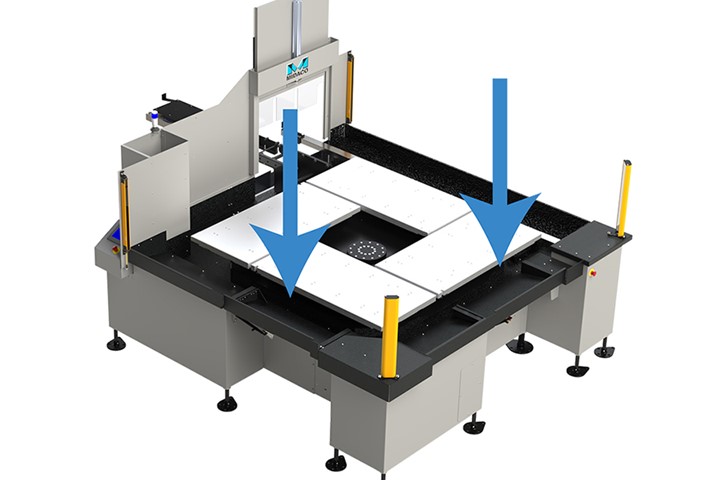

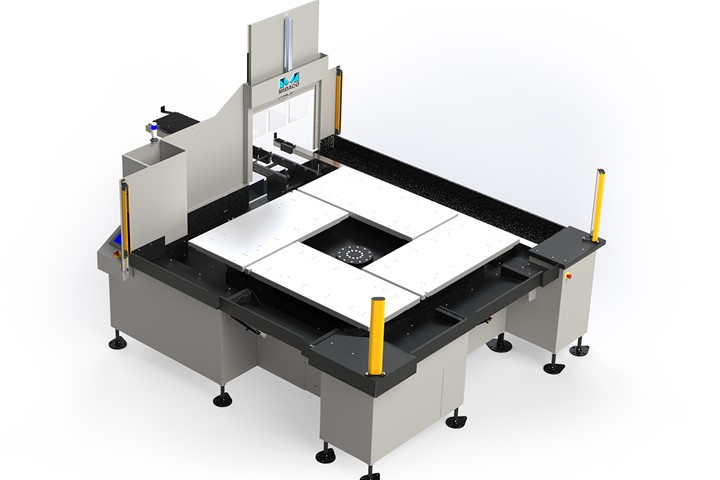

The A2816SDR4 Pallet Pool by MIDACO is a professional-grade automation solution engineered to transform a standard Vertical Machining Center into a high-efficiency continuous production center. This specific model is tailored for the Continental United States market and is built for maximizing machine up-time by allowing operators to stage workpieces externally while the VMC is actively machining. The complete system includes four high-quality 28 inch by 15 inch (711 mm by 381 mm) end load cast aluminum pallets and a Series 16A pneumatic receiver capable of managing a substantial 500 lb (226 kg) workpiece load when evenly distributed.

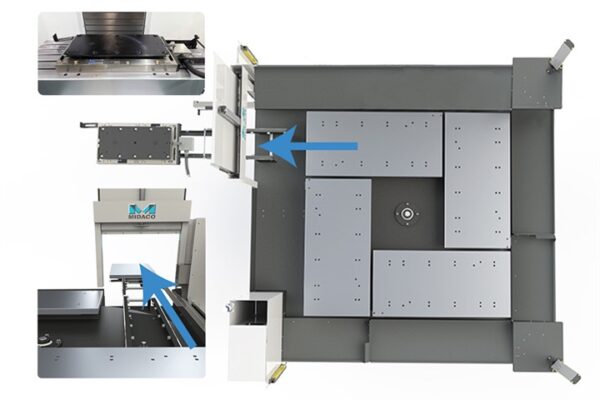

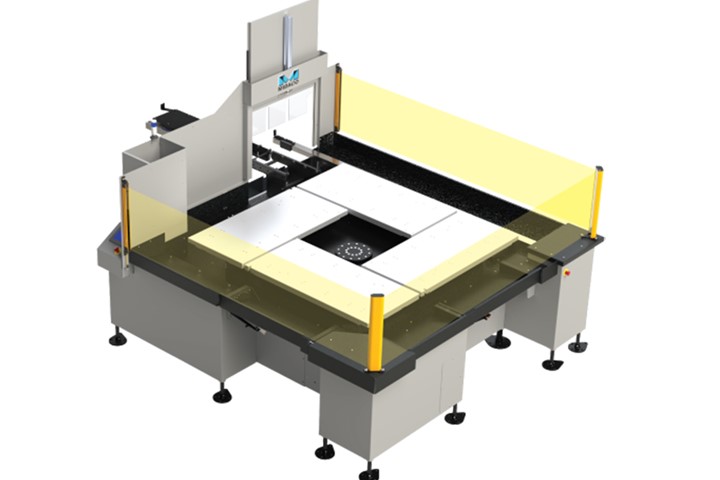

The system’s advanced automation is handled by the Series 16R End Load Shuttle unit, which reliably moves pallets into and out of the VMC. Safety is ensured by an Automatic Door and shuttle guarding that utilizes a light emitter, mirrors, and sensors—with newer models featuring a three-sided light curtain. Crucially, the system features a control panel that is fully integrated with the VMC via easy-to-use M-codes, guaranteeing seamless, hands-free pallet exchange and a smooth transition between machining cycles.
