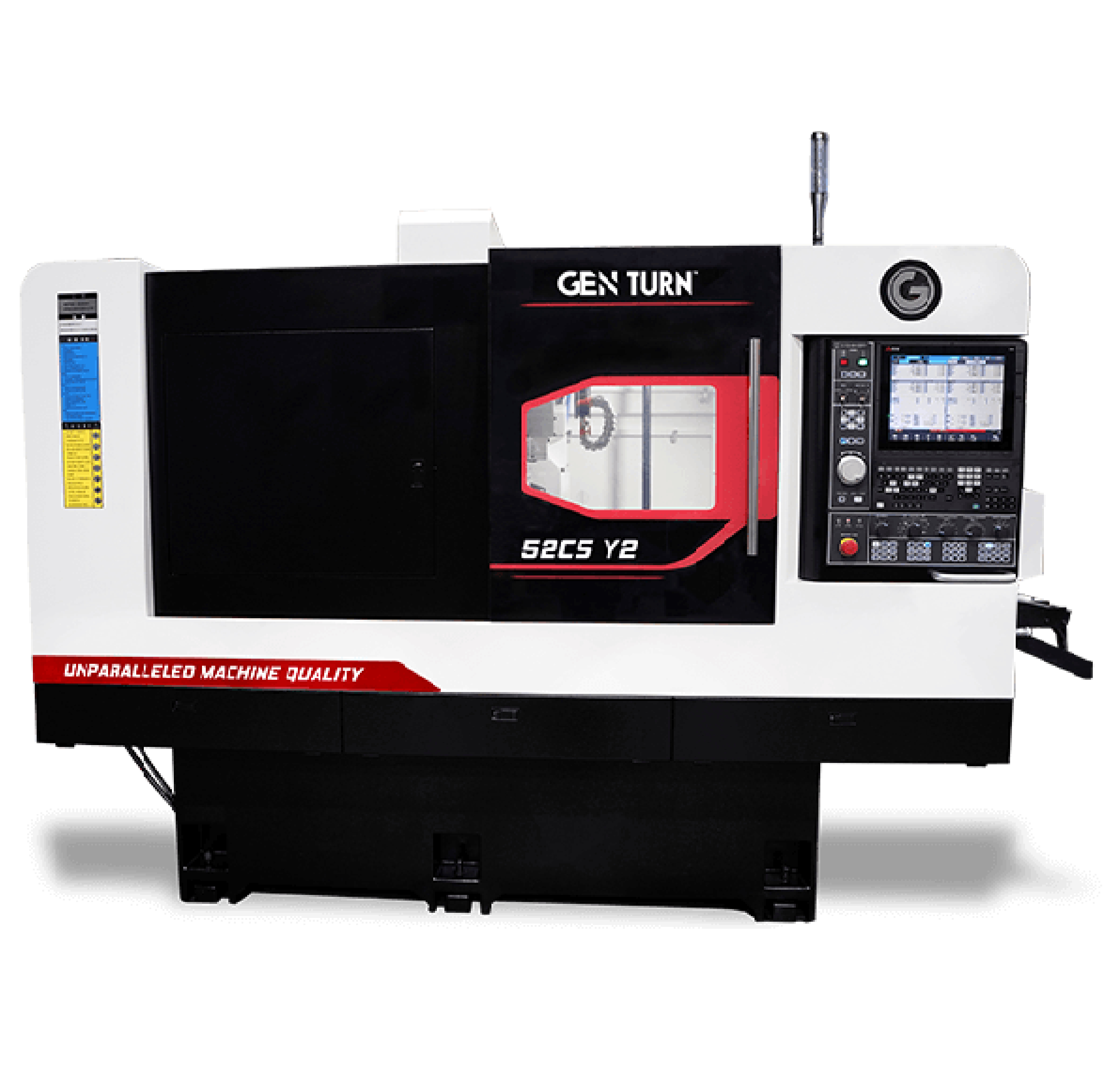

The GEN TURN 52CS Y2 is an advanced, multi-axis CNC Swiss Machine built for precision and speed in high-volume production, featuring an 8-Axis configuration. Its stand-out capability is the large 2-inch (51 mm) bar capacity on the 6-000 RPM Main Spindle (10 HP), complemented by a 6-000 RPM Sub-Spindle (6 HP) with a 4-bearing Quad-Duplex configuration. This machine offers true simultaneous and complex part machining, thanks to Full C-Axis on both spindles and Full Y-Axis on both the main (Y1-axis) and sub-spindle (Y2-axis) slides, offering a substantial Y1 travel of 24-41 inches (620 mm). Tooling is extensive, with 33 total tool positions including 13 live tools that are all gear-driven for maximum rigidity and eliminating belt maintenance. The main cross slide provides 6 ER-20 radial live tools at 6-000 RPM, while the sub-spindle back slide has 4 axial live tools at 6-000 RPM with a powerful 4-0 HP motor. Standard features like a Parts Catcher and Chip Conveyor, along with rapid traverse rates up to 1-181 IPM, ensure high throughput and minimal downtime.
