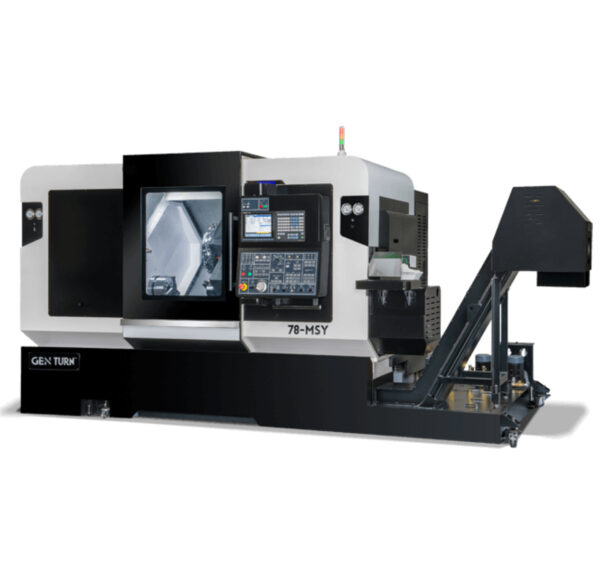

The GEN TURN 78-MSY is an advanced, high-performance 6-Axis CNC Mill-Turn Lathe engineered to handle demanding, complex part production in a single setup. It is built around a heavy-duty platform featuring twin 4-000 RPM opposed spindles-a powerful 30 HP main spindle with a large 3-070 inch (78 mm) bar capacity and a 15 HP sub-spindle with a 2-559 inch (65 mm) bar capacity. This twin-spindle setup allows for efficient, complete front and back work machining with a substantial center distance of 41-7 inches.

The machine’s versatility is driven by its highly capable turret system, which includes 16 tool positions where each station can mount multiple tools. The turret delivers exceptional milling power with a 7-5 HP live tool motor reaching 6-000 RPM. Full multi-axis contouring is achieved through a true Y-Axis with a +-1-968 inch travel and a full C-Axis with 360-000 radial positions on both the main and sub-spindles. The machine is built for large part turning, offering a maximum turning diameter of 12-2 inches and a maximum turning length of 24-8 inches. With a rapid traverse rate of 1-574 IPM on the Z-axis and a heavy machine weight of 17-650 lbs, the GEN TURN 78-MSY provides the speed, rigidity, and capability required for precision manufacturing.
