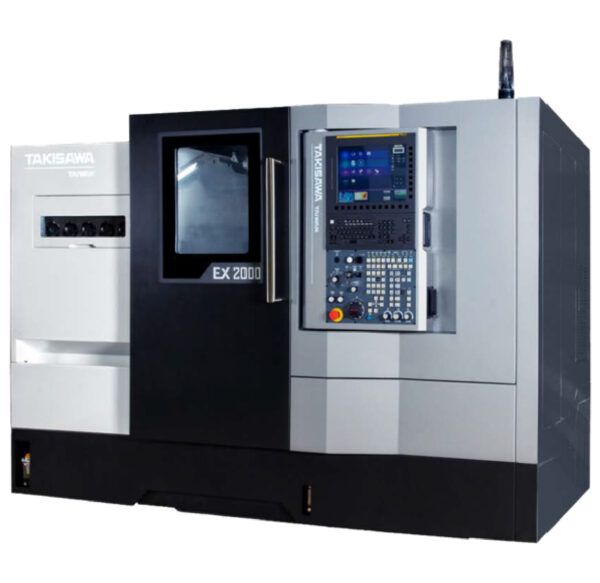

The EX-2000YS is a pivotal model in the new generation EX-2000 Series of turning centers, delivering an exceptional value proposition for high-torque, high-speed turning and milling applications. Manufactured by Taiwan Takisawa, this machine is specifically designed for maximum production and flexibility. Its construction features a box-type flat bed with oil cooling, which ensures accurate stability and high rigidity throughout demanding, long machining cycles.

This particular model is configured for full multi-tasking capability, denoted by the “YS” suffix: the Y-axis allows for off-center milling and complex contouring, and the Sub-spindle enables the transfer of parts for back-side machining, eliminating secondary operations and improving overall quality. The machine comes standard with a milling turret and features two spindles with speeds up to 5,000 rpm. With a Max Turning Diameter of 15.35 in. (390 mm) and a Max Turning Length of 21.10 in. (510.5 mm), the EX-2000YS offers substantial capacity. Furthermore, the inclusion of a part loader for automation makes the EX-2000YS ready for high-volume, unmanned production, contributing directly to a higher return on investment (ROI).
