HBE321A

The HBE321A Dynamic automatic horizontal bandsaw is a modern machine from the BERINGER HBE Dynamic series, engineered for resource-saving production due to its low energy consumption—approximately 30 percent less than previous models. This machine is built for high-performance saw cuts while maintaining low cutting deviations across easy-to-difficult-to-machine metals and plastics. Its stable construction includes a vibration-damping gray cast iron saw frame and cast iron band guiding parts made in-house by BERINGER, which directly contribute to increased tool life.

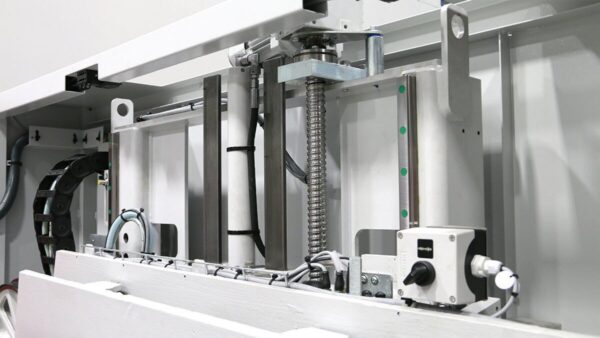

Key features for productivity and precision include a servo downfeed system that uses a ball screw and servo motor for faster idle times and precise saw feeds, directly boosting cutting performance. The sensitive BERINGER cutting pressure control is located directly at the back of the blade, allowing it to quickly and precisely adapt the saw feed to changing material cross-sections when cutting tubes and profiles. The saw also benefits from the Auto-Feed-Control (AFC), which calculates optimal cutting speed and saw feed values based on an extensive material database, even accounting for special materials like those with electro-slag remelting (ESR). For operator ease, the machine is equipped with an intuitive BehrCtrl10 touch control and an automatic guide arm that adjusts without operator intervention. Its generous full enclosure ensures uncompromising work protection combined with good accessibility.

Description

The BERINGER HBE321A Dynamic is an automatic horizontal bandsaw designed for economical and high-performance metal cutting in industry and steel trade applications. It features a maximum round cutting capacity of 320 mm (12-6 inches) and incorporates a servo downfeed system with sensitive cutting pressure control for superior accuracy and increased blade life across a wide range of materials, from profiles and tubes to solid stock.
