HBE511A

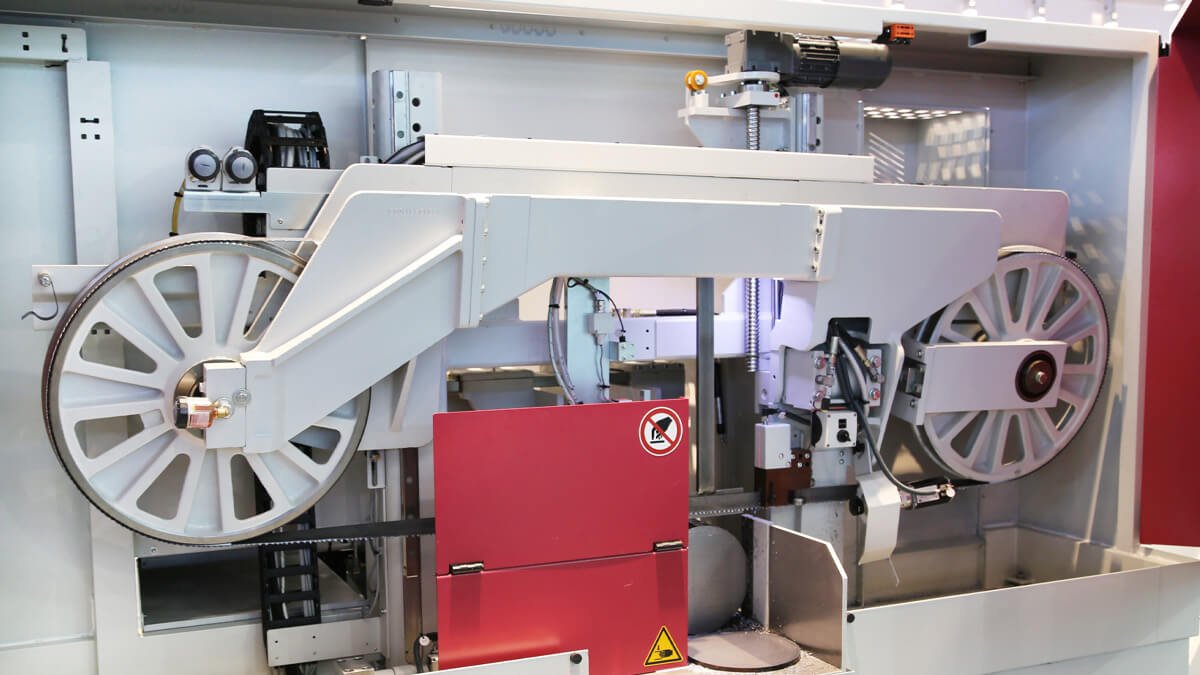

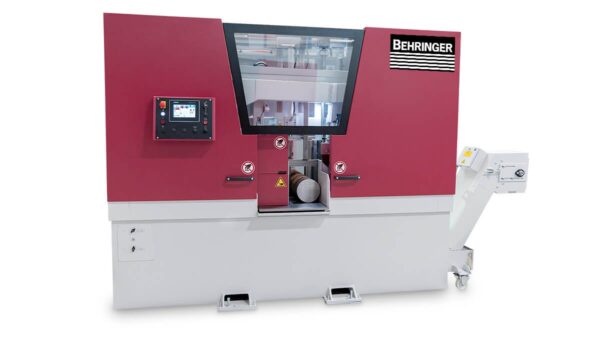

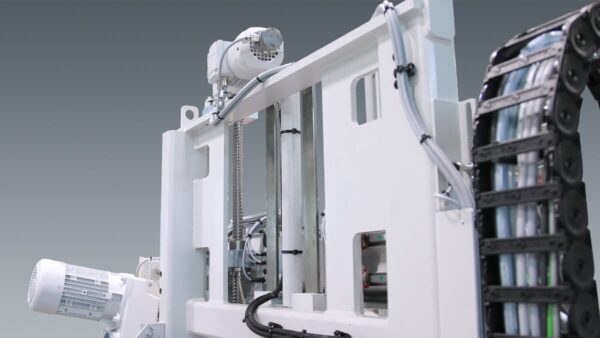

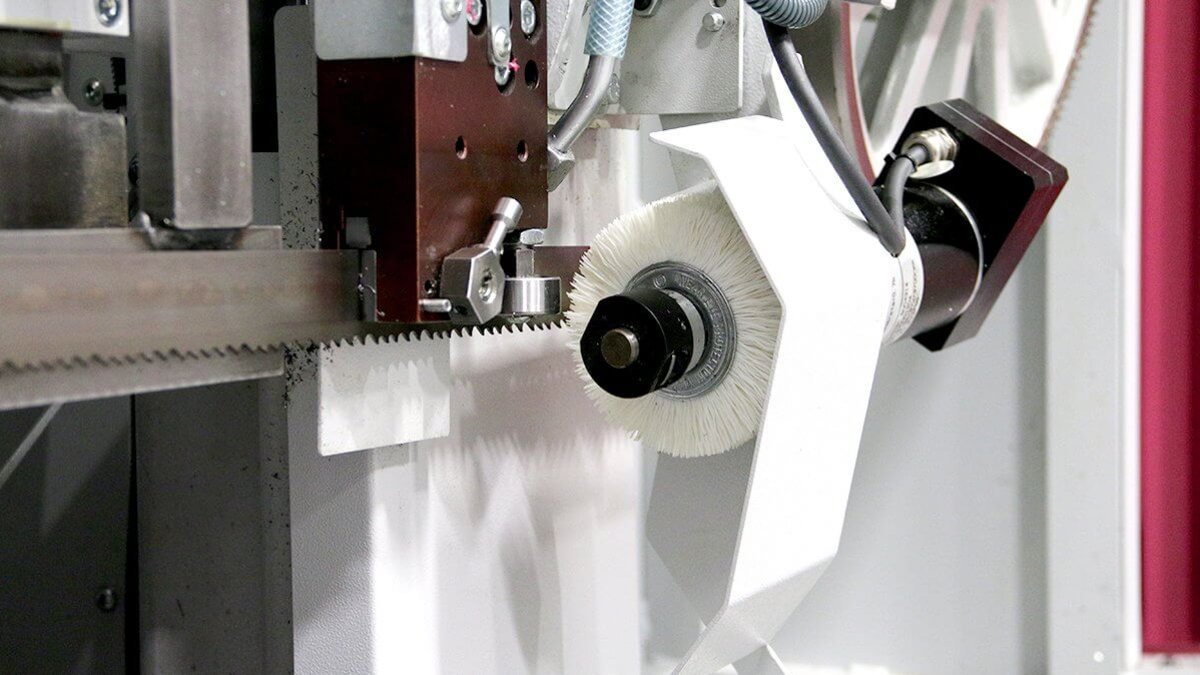

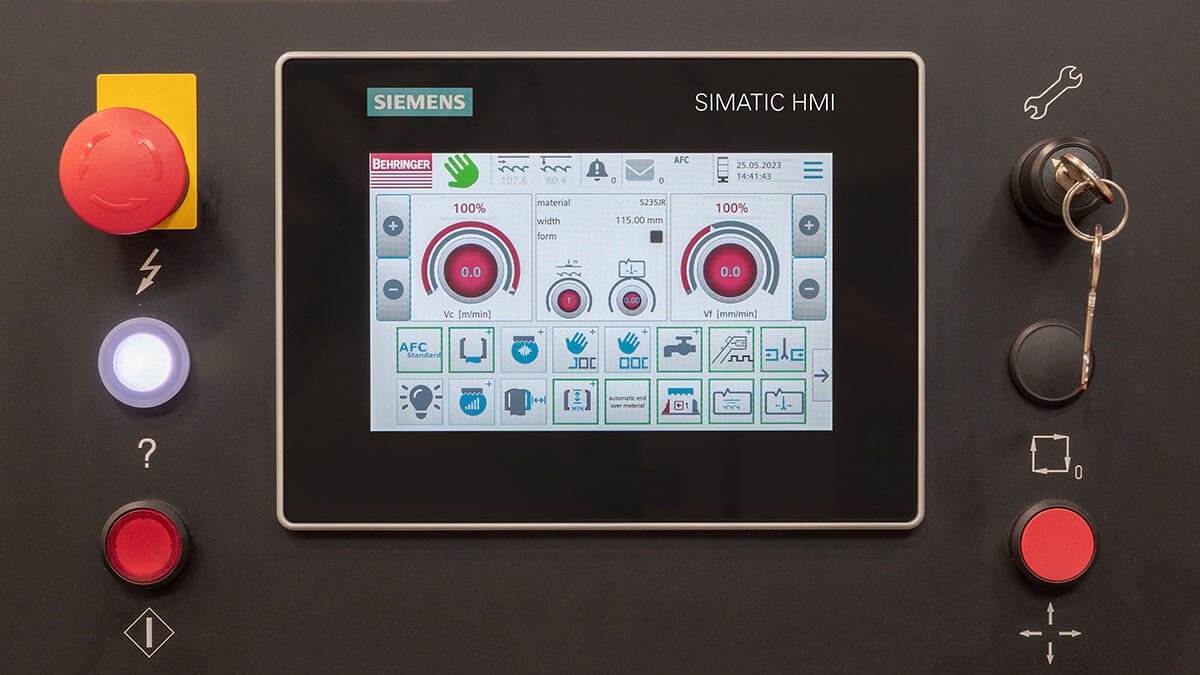

The HBE511A Dynamic automatic band saw is a robust, high-precision machine from the BEHRINGER HBE series, designed to achieve maximum efficiency and low costs per cut. Engineered for durability and high performance, the saw features a stable, vibration-damping saw frame made of gray cast iron and a precision portal-design guide system with linear guides for exceptional stability and maximum service life. The cutting process is fully automated and precisely controlled by the Servo Downfeed System, which uses a ball screw and servo motor to provide precise saw feeds- resulting in higher cutting performance and longer band life. Intelligent automation is provided by the Auto-Feed-Control (AFC)– where the operator selects the material and the machine automatically calculates the optimal saw feed and cutting speed, ensuring optimum sawing results without prior knowledge. The HBE511A handles material up to 510 mm round and 510 x 510 mm flat. Practical features include an automatic guide arm that adjusts without operator intervention- a double clamping vice for process reliability during single or bundle cuts- and an electrically driven chip brush. This bandsaw also boasts low energy consumption– reducing power use by approximately 30 percent compared to older models- and features an intuitive BehrCtrl10 touch control for easy operation.

Description

The BEHRINGER HBE511A Dynamic is a high-performance automatic horizontal bandsaw built for economical use in the steel trade and industry. It delivers accurate cuts on a wide range of materials- from profiles to solid stock. Key features include a vibration-damping cast iron saw frame, energy-efficient operation, and a servo downfeed system for superior cut quality and long blade life. Its maximum cutting capacity of 510 mm round and flat, and Auto-Feed-Control (AFC) make it a powerful, versatile solution.
