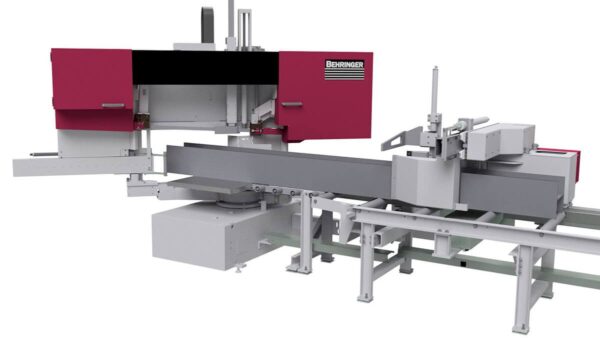

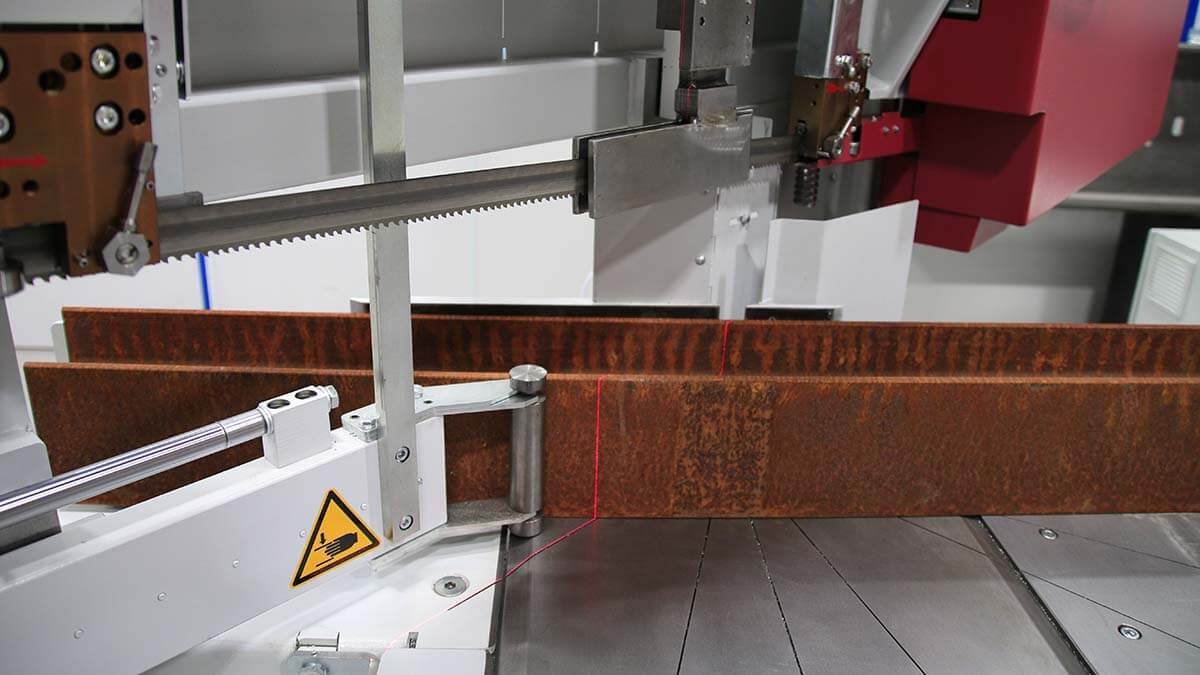

The BEHRINGER HBE420-723GA is an advanced, fully automatic horizontal miter band saw engineered for top-tier performance in metal fabrication and production lines. As part of Behringer’s HBE Dynamic series, this machine is specifically designed for cutting profiles, pipes, and solid materials with exceptional speed and precision. Its distinguishing feature is dual-sided miter cutting, allowing angular cuts from +30 degrees to -45 degrees (or +60 degrees to -30 degrees for specific models) without repositioning the material, significantly enhancing efficiency for structural steel and general engineering applications.

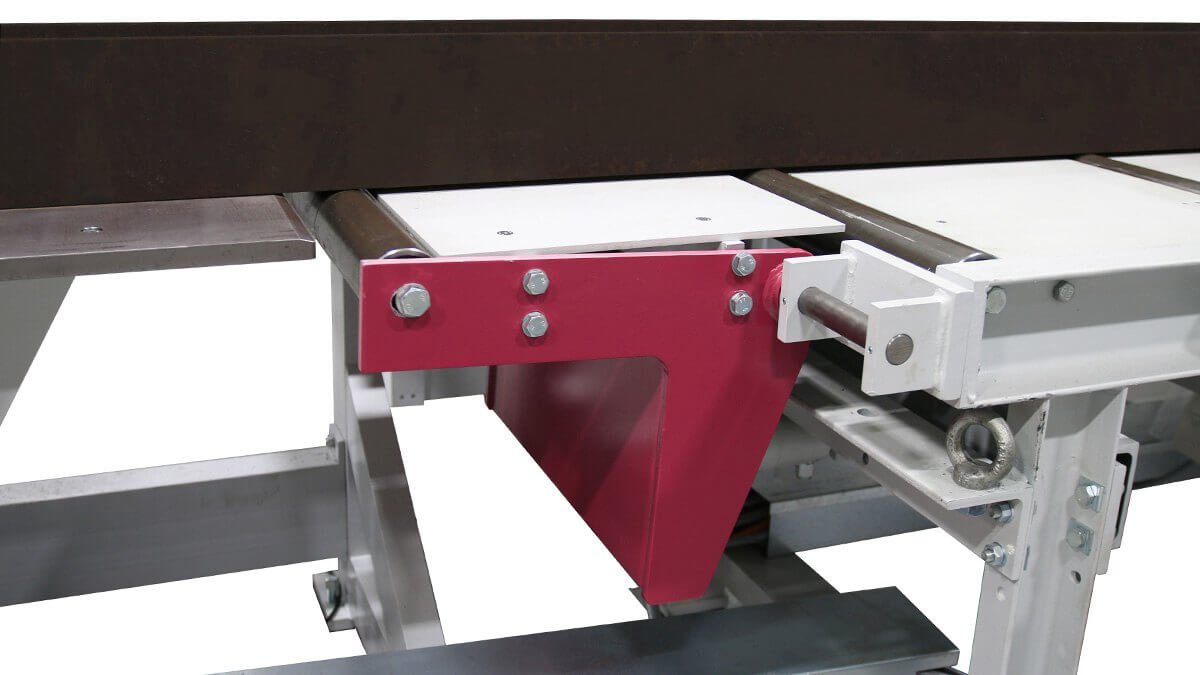

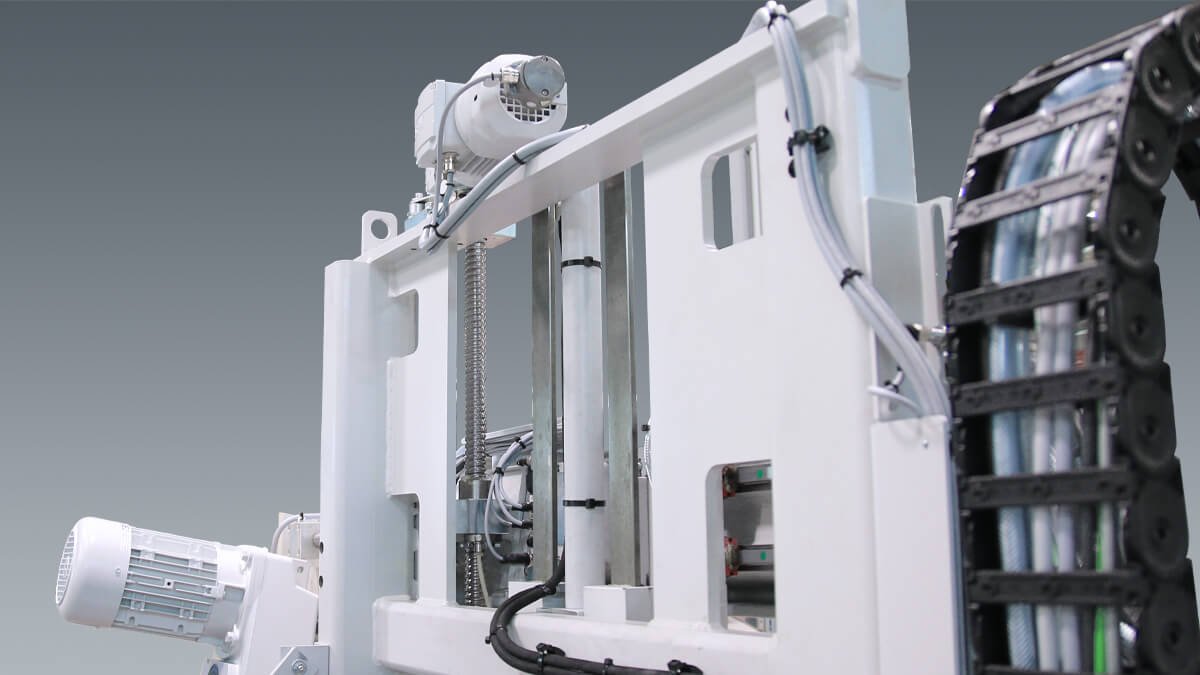

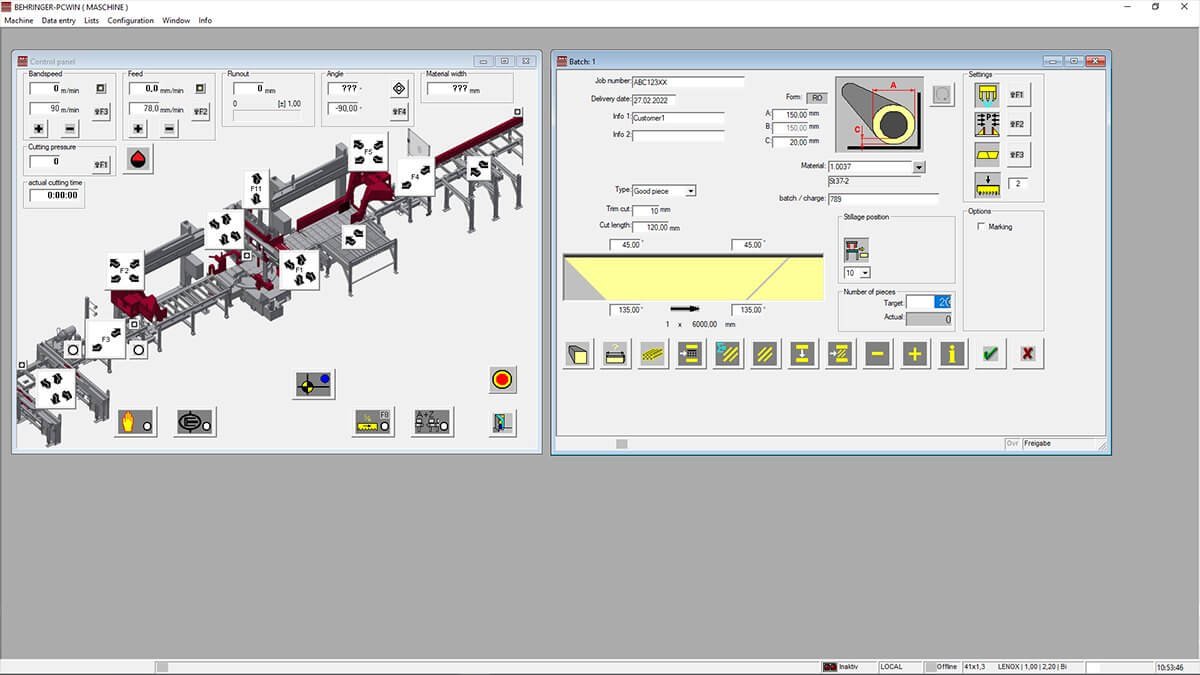

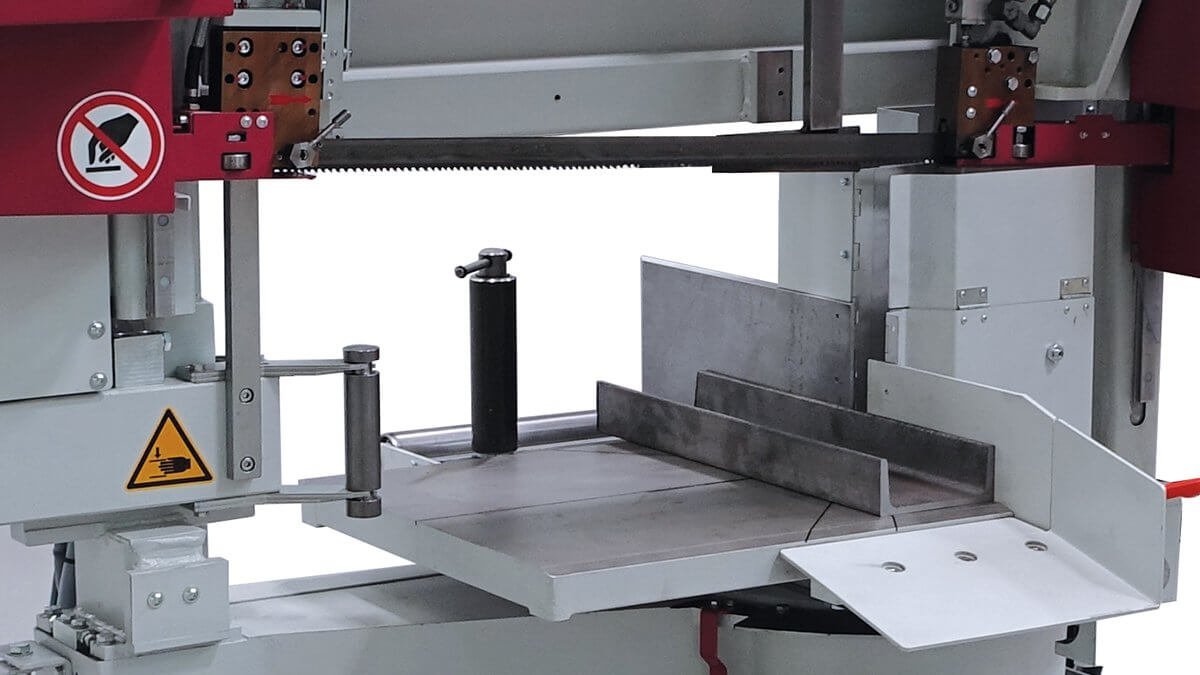

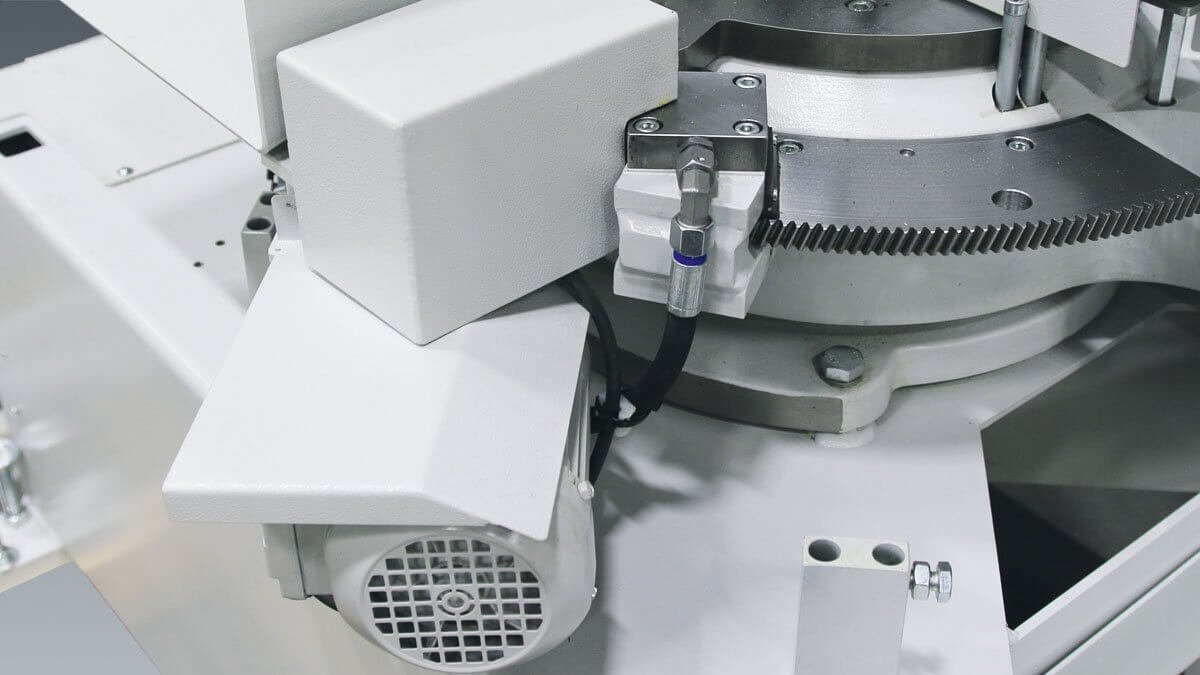

The saw’s robust construction includes a vibration-damping, gantry-type saw frame, providing unparalleled stability and reducing noise. A powerful inverter-controlled band drive ensures optimal cutting parameters for various materials, maximizing blade life and cut quality. Material handling is automated with a feed unit utilizing a servo-controlled ball screw, providing precise single strokes up to 723 mm (28.46 inches). The miter adjustment is also servo-driven, guaranteeing accurate and repeatable angle settings. The HBE420-723GA features a generous cutting range of 28.3 inches x 16.5 inches (720 mm x 420 mm) for rectangular stock at 90 degrees. Integrated features like a material end switch, a chip conveyor, and an ergonomic control panel (BEHRINGER NC-control system) contribute to its status as a highly productive, user-friendly, and reliable solution for automated miter cutting.
