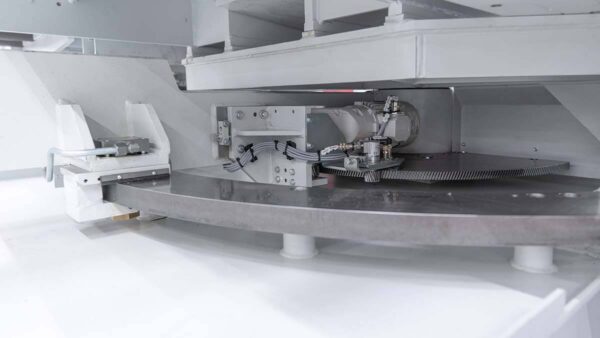

The BEHRINGER HBE610-1256GA is a state-of-the-art, fully automatic horizontal miter bandsaw, part of Behringer’s innovative HBE Dynamic series. Engineered for high-volume production, this machine is ideal for a wide range of materials, including profiles, tubes, and solid materials, with a round cutting capacity of 24.0 inches (610 mm) and rectangular capacity up to 24.0 inches by 49.2 inches (610 mm x 1250 mm). Its standout feature is the dual-miter capability, allowing the saw frame to pivot from +60 degrees to -45 degrees (or -60 degrees with special options) without moving the workpiece, significantly increasing efficiency in angle cutting applications.

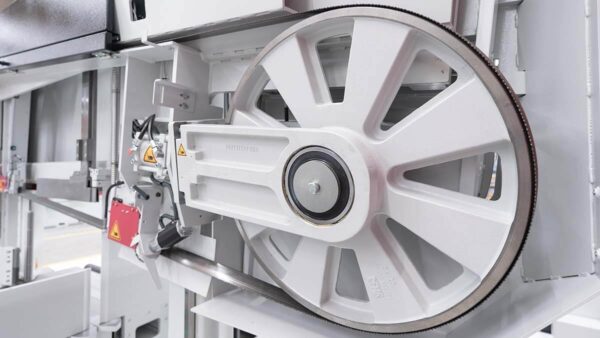

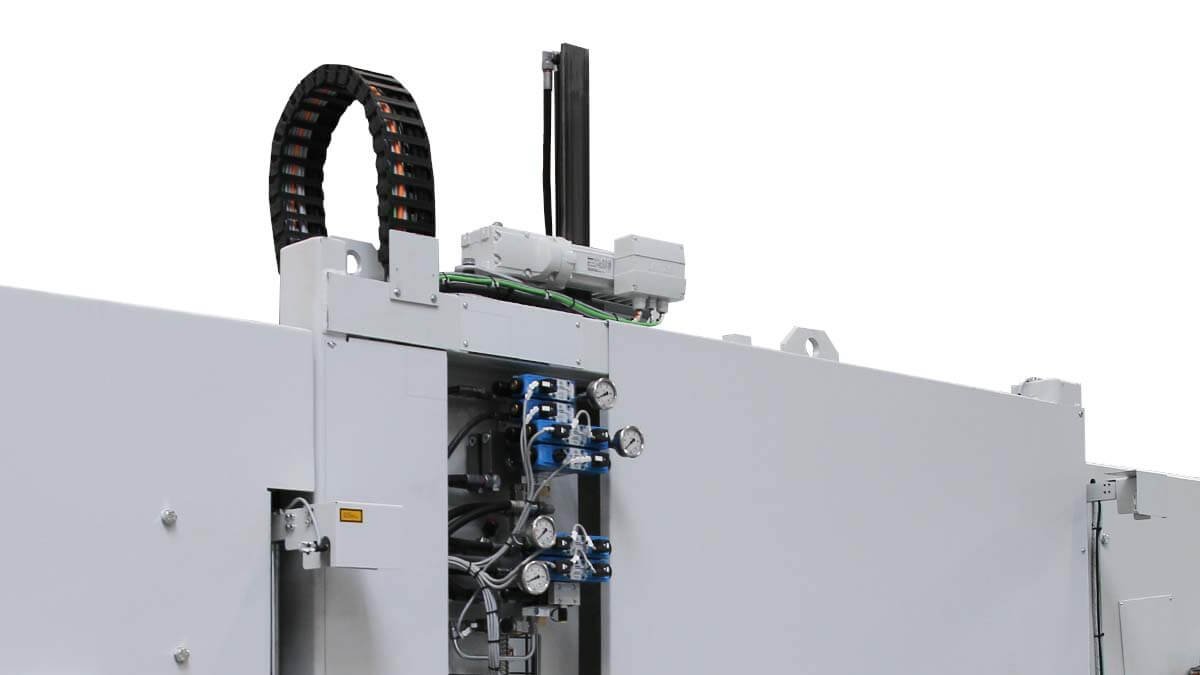

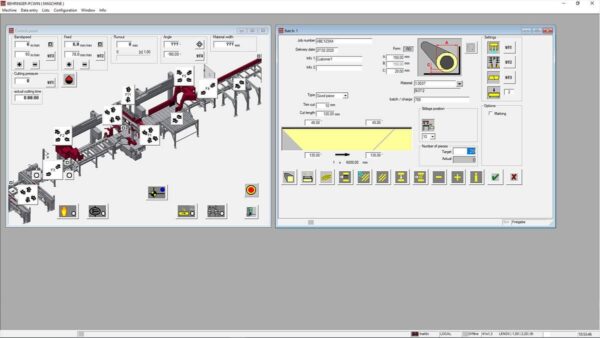

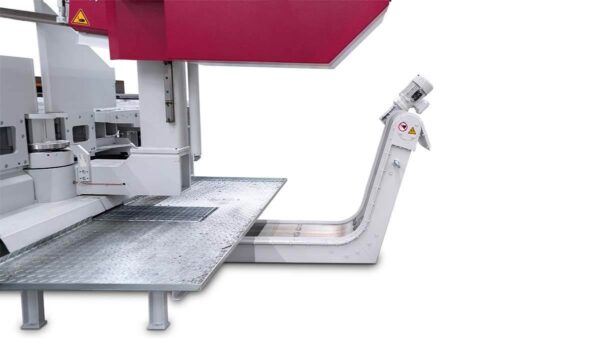

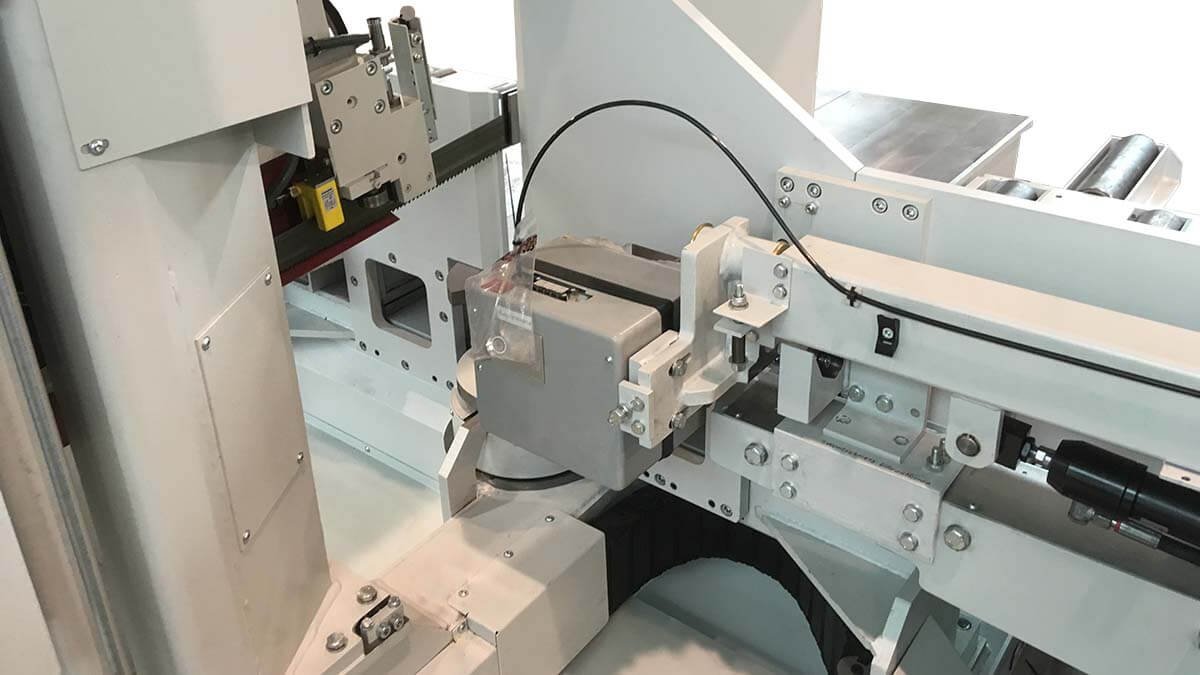

The HBE610-1256GA utilizes a highly rigid gantry design for the saw frame guidance, providing exceptional stability and minimizing vibration during cutting. This, combined with the patented Behringer cutting pressure control, ensures burr-free cuts and excellent blade life. Material handling is fully automated with a powerful feed unit featuring a servomotor and ball screw, ensuring precise and repeatable material positioning. The machine is designed for user-friendly operation with a user-friendly NC control system and a range of standard features, including hydraulic blade tensioning, a chip conveyor, and an intensive coolant system. The robust cast construction of the machine frame, band wheels, and saw frame further guarantees long-term precision and durability for demanding industrial applications.
