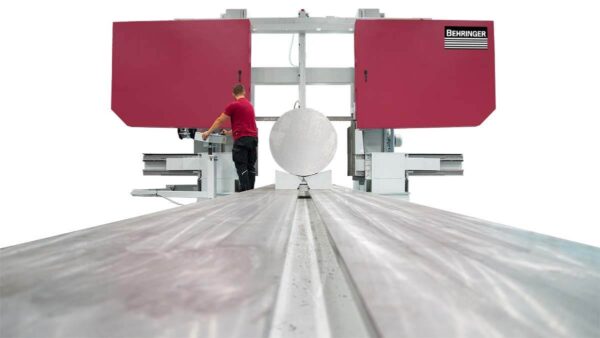

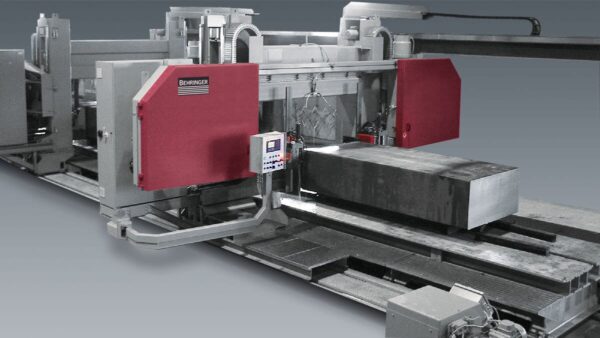

The BEHRINGER HBP1100 Gantry is a top-tier Gantry-type Horizontal Bandsaw designed for the most demanding cutting tasks involving very large and heavy ingots, blocks, and plates. This machine sets itself apart with its exceptional rigidity and cutting performance, built to process challenging materials such as tool steel, stainless steel, aluminum, and nickel-based alloys with unmatched precision.

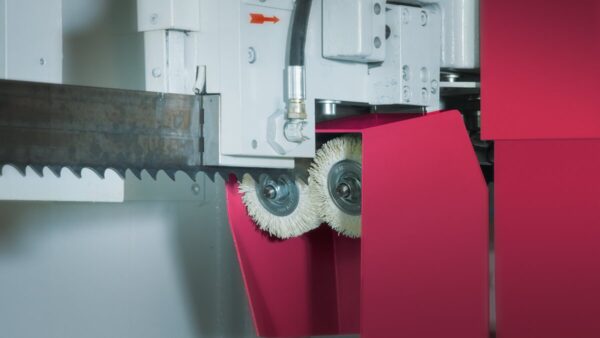

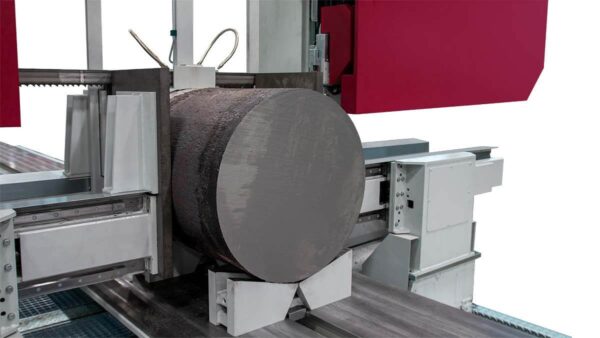

The robust gantry design is a cornerstone of its stability, featuring the saw frame and blade guided on twin linear guides for smooth, accurate movement and minimal vibration. This ensures consistent cut quality and extended blade life, even under extreme loads. The HBP1100 Gantry boasts a formidable cutting capacity of 43.3 inches by 43.3 inches (1100 mm x 1100 mm) and can accommodate workpieces weighing up to 55,000 lbs (25,000 kg) on its large 75-inch by 75-inch (1900 mm x 1900 mm) clamping area.

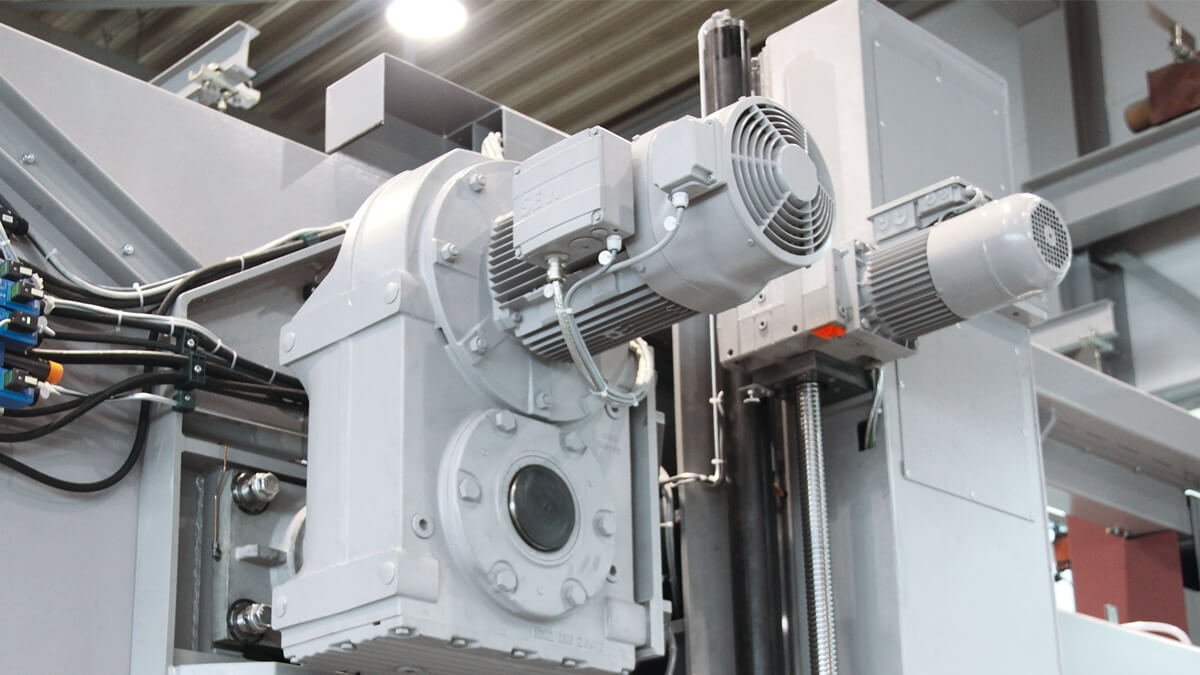

Powered by a 15 HP (11 kW) main drive motor, the saw delivers a variable blade speed range of 50-395 fpm (15-120 m-min), allowing for optimal cutting parameters across a diverse range of materials. Its advanced features include a hydraulic clamping system for secure workpiece hold and an integrated coolant system to dissipate heat and clear chips, further enhancing cutting efficiency and surface finish. The HBP1100 Gantry is the ultimate solution for heavy-duty, high-precision cutting in primary metal production, forging, and large-scale manufacturing.
