Flint Machine Tools

LPS-T1500

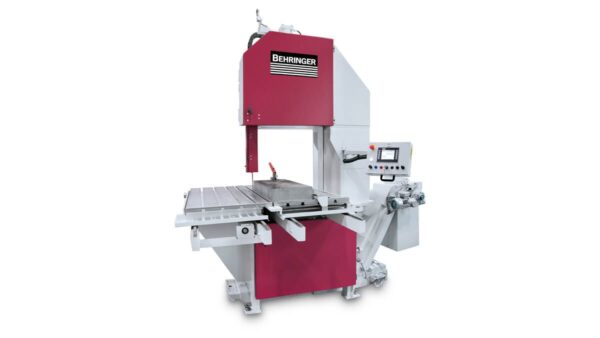

The BEHRINGER LPS-T1500 is a leading-edge vertical plate and block band saw, engineered for the most demanding applications in steel service centers, forging plants, and heavy equipment manufacturing. This machine excels at cutting large blocks, plates, and structural components with exceptional precision and efficiency. Its foundation is a massively built, vibration-damping cast iron frame that provides superior stability and long-term accuracy, even under aggressive cutting conditions.

Performance is driven by a powerful 30 HP saw blade motor that ensures robust and consistent cutting through challenging materials. The LPS-T1500 boasts impressive cutting capacities, handling materials up to 60 inches wide by 20 inches high (1500 mm x 500 mm). Precision and automation are key to its design: it features an automatic band tensioning system for optimal blade life and consistent cut quality, along with a programmable length stop. Material handling is streamlined with an electro-mechanical material feed system that provides accurate positioning via a ball screw, controlled by a length measuring system with a resolution of 0.001 inch. Other advanced features include automatic feed control, hydraulic blade guides with carbide inserts for maximum blade stability, and an efficient chip conveyor, all contributing to high-volume, reliable operation.

Description

The BEHRINGER LPS-T1500 is a heavy-duty, high-performance vertical plate and block band saw designed for large-scale steel service centers and heavy equipment manufacturers. It features a robust, vibration-damping cast iron frame, an automatic band tensioning system, and a powerful 30 HP saw blade motor capable of cutting material up to 60 inches by 20 inches. Its fully automatic operation includes an electro-mechanical material feed for precise positioning.
