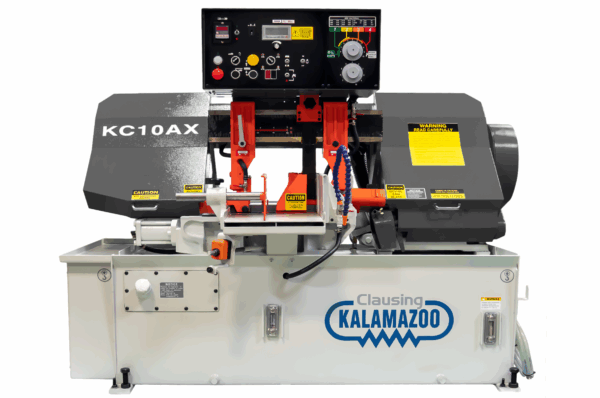

The KC10AX Automatic Horizontal Bandsaw by CLAUSING is a heavy-duty production machine designed to maximize throughput and minimize operator intervention. Built for high production output, this model excels in both semi-automatic and fully automatic operation. Its robust design allows for cutting a maximum 10 inch round capacity and a 10 inch by 11 inch rectangular capacity at 90 degrees.

The saw’s performance is driven by a powerful 3 HP motor operating on 230 or 460 Volts- 3 Phase, ensuring a stable flow of voltage and higher horsepower for demanding cuts. Blade life and cutting efficiency are optimized through infinitely variable blade speeds ranging from 66 to 328 feet per minute, clearly displayed on an LED blade speed readout.

The core of its automation is the hydraulic shuttle feed system, which provides a maximum single index length of 15.75 inches, allowing a maximum feed of 141.75 inches over nine indexes with a precise feed accuracy of plus-minus 0.004 to 0.008 inches. The hydraulic system also controls the blade tension and down feed, while features like automatic height setting, auto shutoff at the end of material, and a front-mounted digital length gauge ensure seamless, unattended operation. Standard features also include a recirculating coolant system, a hydraulic blade tension system, and a 2 Year Limited Warranty.
