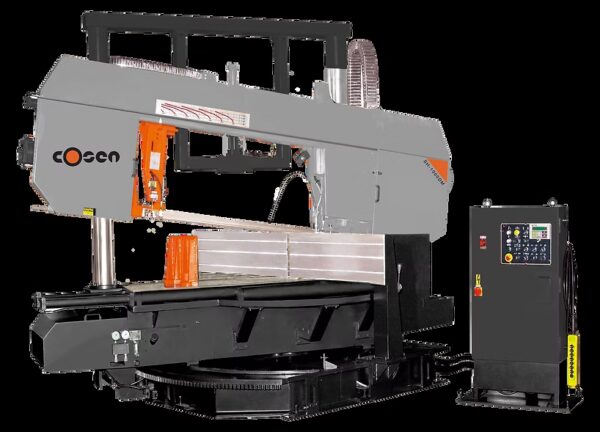

The SH-1000DM Structural Miter Cutting Band Saw by Cosen is designed to meet and exceed the demanding requirements of industrial metal-cutting operations. Its core strength lies in its highly rigid hydraulic dual-column structure and heavy-duty cast iron swivel base, which collectively enable precise straight and miter cutting up to +60 and -40 degrees. This robust design ensures the machine’s durability and provides high operational efficiency in a demanding production setting.

The saw is equipped with a 10 HP blade motor and an inverter blade drive system, allowing for an infinitely variable blade speed range of 82 to 443 FPM to optimize cutting across various materials. Precision is further secured by a hydraulic blade tensioning system and high-quality carbide blade guides and bearings. For efficient material handling, the machine features a cast iron hydraulic vise with a split jaw to help reduce burr and synchronized vise movement with the hydraulic powered cast iron guide arm. Operators benefit from an adjustable flood coolant system, a dual valve feed pressure and feed rate system, and a tethered control panel, ensuring reliable operation and low cost per cut. The SH-1000DM offers a substantial rectangular capacity of 20.5 inches by 40 inches at 0 degrees.
