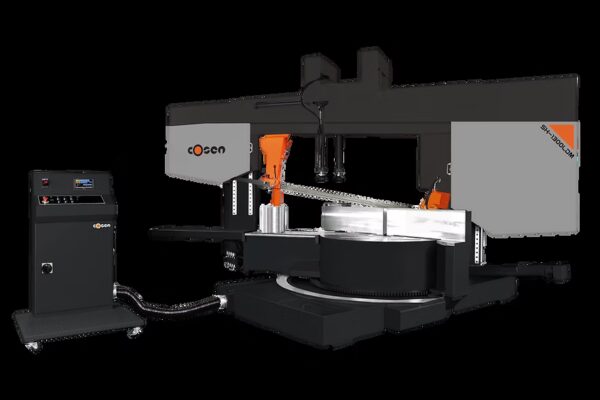

The SH-1300LDM is COSEN’s robust solution for demanding production and fabrication tasks, classified as a Horizontal Column Miter saw. It is constructed with a highly rigid frame and heavy-duty cast iron components to ensure durability and stable cutting in continuous operation. The saw’s superior performance is achieved through a precision linear guide way design and a hydraulic powered cast iron guide arm, minimizing deflection and maximizing cut accuracy.

Mechanically, the SH-1300LDM features a gearbox designed to resist high lateral pressure and thermal distortion. The blade system is advanced, incorporating an inverter blade drive system that provides infinitely variable blade speeds to optimize cutting for different materials. Blade life and performance are further enhanced by a hydraulic blade tensioning system and durable carbide blade guides with bearings. For operation, the machine uses a dual valve system for precise control over feed pressure and feed rate, controlled via a tethered control panel. The cast iron hydraulic vise includes a split jaw to help reduce burr, while an adjustable flood coolant system and an additional hose for cleanup ensure a clean, efficient work area. The SH-1300LDM’s cast iron swivel base allows for straight cutting and miter cuts up to +60 degrees, making it a highly flexible and efficient tool for modern metal fabrication.
