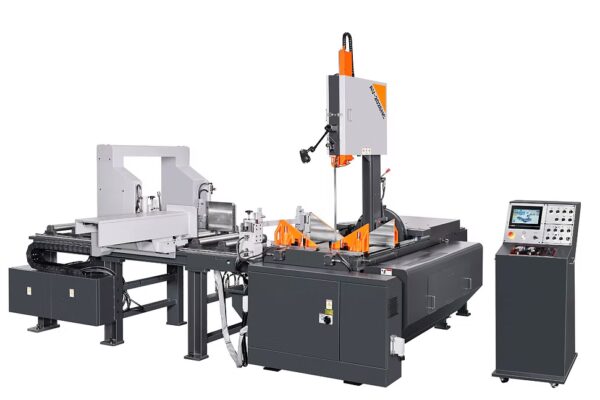

The COSEN AV-2026NC represents a high-end solution in the Vertical Tilt-Frame Band Saw series, specifically designed for fully automatic, high-volume production in fabrication shops. The machine’s heavy-duty saw frame is engineered to significantly reduce vibration and enhance overall cutting performance and blade life. Its main feature is the hydraulic tilt-frame head, which provides exceptional versatility by allowing miter cuts from 90 degrees (straight) down to 60 degrees in both directions, with the angle easily set through the HMI touchscreen interface.

Powering the cutting action is a robust 7.5 HP blade motor with an inverter blade drive system that delivers infinitely variable blade speeds from 66 to 328 FPM. Material indexing is managed by a 7-inch HMI touchscreen system that supports controlled multiple indexing up to an impressive 999 inches in length, utilizing a precise 54-inch single-stroke ball screw indexing mechanism. Additional features promoting durability and efficiency include a hydraulic blade tensioning system, high-quality carbide blade guides and bearings, adjustable cast iron guide arms, and a motor-driven blade brush to keep the blade clean. The machine also includes Cosen’s proprietary Save-A-Blade feature and a high-capacity adjustable flood coolant system. With a substantial operational weight of 8-518 lbs, the AV-2026NC confirms its solid construction and stability for heavy-duty work.
