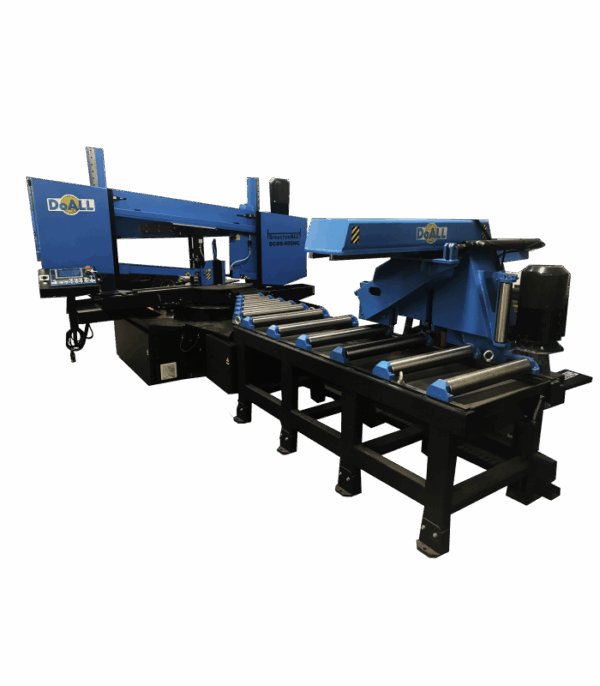

The DoALL DCDS-600CNC is a powerful high-production, fully automatic, and digitally controlled Dual Column, Dual Miter Band Saw, making it the ideal machine for large-scale fabrication, automotive, and aerospace applications involving structural materials, stainless steel, and tool steel. Its core design is based on a robust dual-column structure with a four-point head mounting system and linear rails, ensuring extreme stability and increased blade life. The machine boasts a generous cutting capacity of 24 inches wide by 17-25 inches high.

The sawing head is a double-swivel design, capable of performing precise miter/angle cuts at 60 degrees both left and right, and is hydraulically locked to prevent drift. The saw head is set at a 7-degree cant, which further improves cutting efficiency and blade life. Operation is managed by a user-friendly Siemens touch display controller that can store up to 200 sawing operations. Material indexing is handled by a highly accurate servo-driven rack and pinion system with a 78-5 inch single stroke, significantly decreasing cycle time for increased production. Standard features include front and rear vise nesting for multiple-piece cutting, a variable frequency drive for infinite band speed control, a modified metered feed system for precise feed rates, and a combination of flood coolant and a mist-style band lubrication system. This machine is built for high-output fabricators needing rapid, automated cutting of multiple angles with minimal human intervention.
