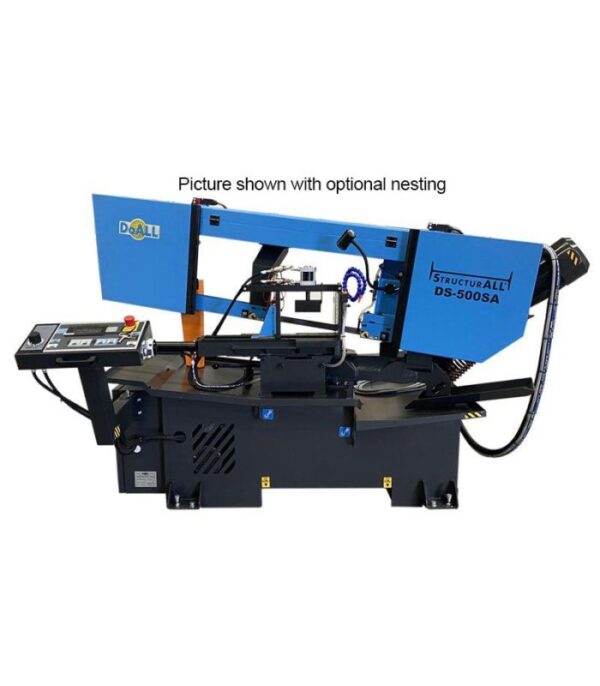

The DoALL DS-500SA StructurALL Dual-Miter Semi-Automatic Band Saw is a heavy-duty, versatile metal-cutting machine designed for machine shops, metal service centers, and industrial plants. As a semi-automatic horizontal scissor saw, it is optimized for cutting material both linearly and at angles with maximum precision and operator safety. The machine’s dual swivel head enables miter cuts up to 60 degrees left and 60 degrees right, significantly reducing material handling. The robust saw head is mounted at a 2-degree slope (cant design), which decreases the tooth load at the end of the cut, thereby extending blade life and improving cut quality.

The semi-automatic cycle is programmable, allowing the operator to control hydraulic on-off, head movement, band drive, and vise clamp-unclamp functions, which maximizes productivity. Precision and ease of operation are guaranteed by a standard Mitsubishi digital readout that displays the exact cutting angle and a touch screen control panel that monitors critical functions like blade tension and band speed. The saw utilizes a Direct Driven Band Drive via a gear reduction unit for positive torque and features a full-stroke hydraulic vise with variable vise pressure control. Safety features include the movable control console, saw blade guards, and band door interlocks, ensuring the operator remains safely away from moving parts during the cut.
