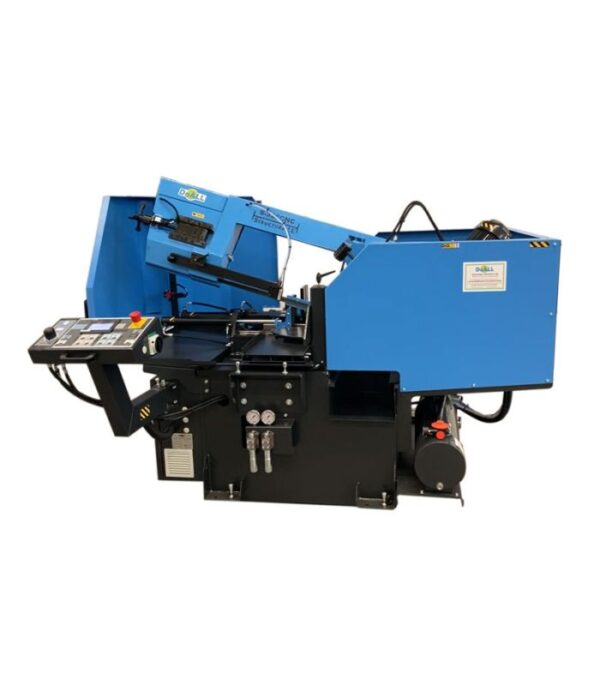

The DoALL S-320CNC Automatic CNC Swivel Band Saw is a high-performance, hydraulically controlled machine perfect for fabrication shops, maintenance facilities, and manufacturing plants requiring precision angular cuts. Classified as a horizontal StructurALL®, scissor-style saw, the S-320CNC offers a substantial machine capacity of 12-5 inches (width) by 11-75 inches (height). Its versatility is highlighted by a miter-cutting saw head that can be manually swiveled for angular cuts up to 60 degrees in semi-automatic mode.

At the core of its efficiency is the fully automated operation driven by a Mitsubishi digital touch screen controller. This user-friendly interface allows operators to easily program, save, and execute up to 20 individual programs with 15 different part lengths, thanks to the hydraulically controlled automatic indexing. The indexing system uses a servo-controlled ball screw for superior accuracy and repeatability. Power comes from a 3-5 hp motor and a ball screw-driven system. Standard features like full-stroke hydraulic vises, automatic overload feed protection (BRP function), and a movable control console ensure enhanced productivity, accuracy, and operator safety. The S-320CNC is the ideal investment for those looking to automate complex miter cutting tasks within tight tolerances.
