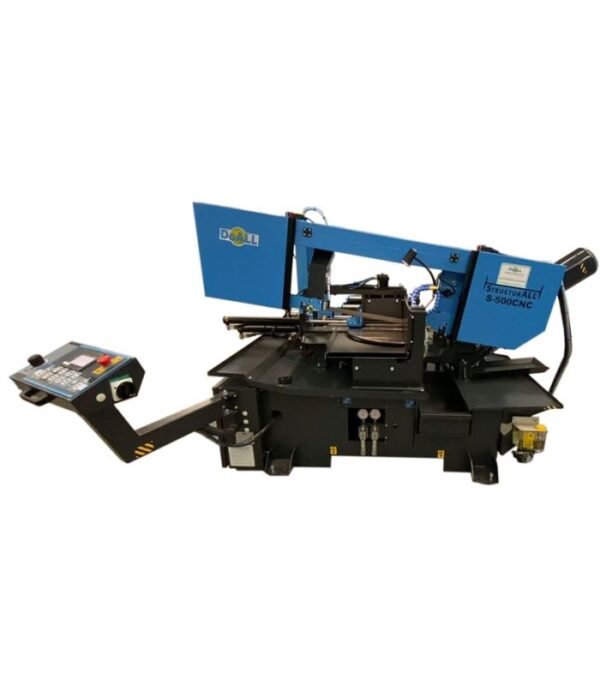

The DoALL S-500CNC Miter CNC Band Saw is an automatic, hydraulically controlled machine perfect for shops aiming to automate their production, including mid-sized fabricators, automotive, powersports, and tool manufacturing plants. This scissor head bandsaw offers two-in-one functionality by performing both vertical and miter cuts, adjustable up to 60 degrees in semi-automatic mode for increased versatility. It boasts a maximum cutting capacity of 14 inches (356 mm) for round tubes and 19-5 inches by 13-25 inches (495 mm x 337 mm) for rectangles.

The saw’s fully automated operating system is managed by an easy-to-use Mitsubishi digital touch screen controller, which allows operators to write and save up to 20 individual programs with up to 15 different part lengths, dramatically saving production time. The machine features automatic indexing via a servo-controlled ball screw and linear rails for superior accuracy and repeatability. Key hardware features include full-stroke hydraulic vises with nesting fixtures for multiple-piece cutting, an overfeed protection (BRP) function, and a VFD-controlled direct-driven band drive for positive torque. Designed to maintain high safety standards, the S-500CNC is the solution for achieving perfect joins with consistent precision and reduced labor involvement.
