Flint Machine Tools

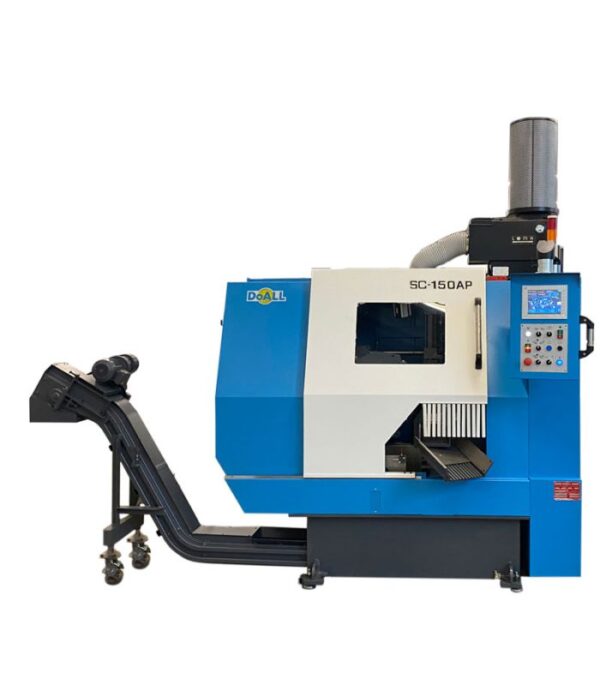

SC-150A Circular Saw

The SC-150A Circular Saw is an industrial-grade, fully automated Circular cut-off or Cold Saw designed for high-production cutting of a wide range of metals. Its foundation is a solid, heavy-duty construction that provides superior rigidity and significantly reduces vibration, directly leading to higher cutting rates, exceptional accuracy, and superior surface finish. The machine features advanced Fully-Automated CNC Controls and a powerful 25 HP motor, allowing it to function as a “tireless production team member” after the part specifications are dialed in. Precision is maximized by a Servo Driven Ballscrew Head Feed, which ensures optimum tooth load and extended blade life. Material handling is automated with a 16-foot automatic loading table for round bar, and clamping is achieved with Four Point Material Clamping, including a split front vise and variable vise pressure control to prevent distortion. Interchangeable Hardened Tool Steel Wear Plates contribute to a near to burr-free finish on cut parts, allowing them to proceed directly to the next operation. This machine also features a high-efficiency gearbox, an electric hinge steel belt design chip conveyor, and a high-pressure air mist lubricator system, all engineered for maximum productivity and reliability.

Description

The SC-150A Circular Saw is a fully automated, high-production cold saw built with solid, heavy-duty construction for superior rigidity and minimal vibration. Driven by a powerful 25 HP motor and CNC controls, it delivers exceptional accuracy and a superior surface finish on materials up to 5-90 inches round, making it ideal for reducing cost per unit in demanding, high-volume production environments.

Square Material Machine Capacity: 2.76″ – 2.76″ x 4.33″ – 4.33″ (65-105mm x 65-105mm)
Round Material Machine Capacity: 2.76″ to 5.90″ (70mm to 150mm)
Production Level: High

Standard features: Fully-Automated CNC Controls, High-Production Capabilities, and 25 HP Motor
