Flint Machine Tools

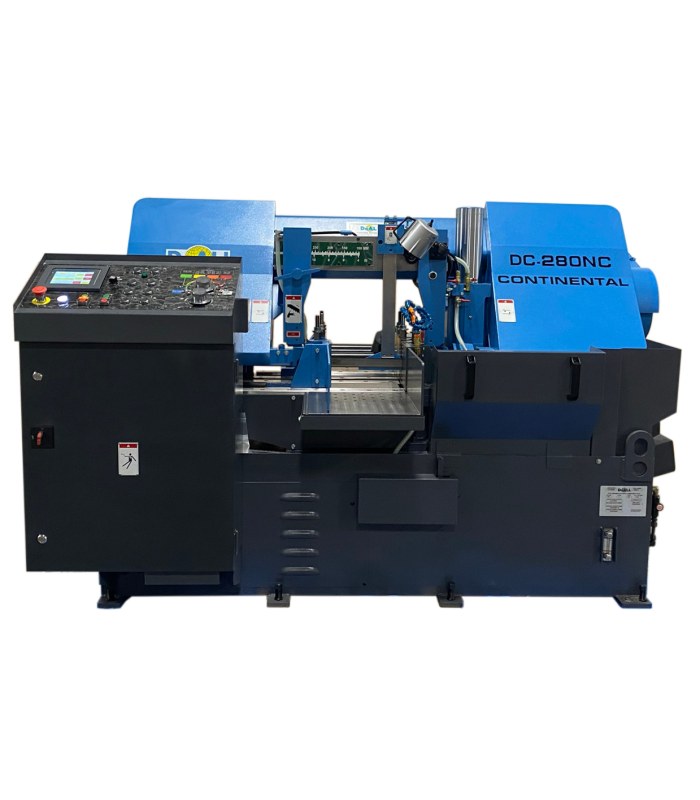

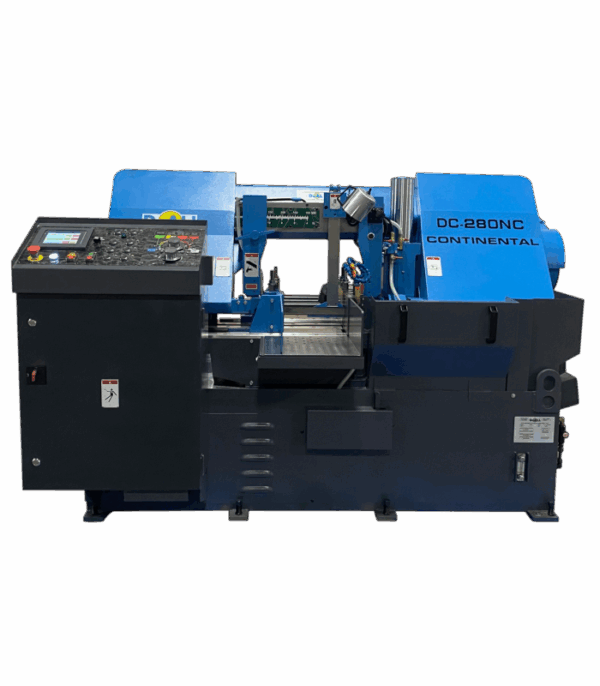

DC-280NC Production Band Saw

The DC-280NC Production Band Saw, part of the DoALL Continental Series, is a leading choice for facilities requiring high-level, fully-automatic operation and rock-solid reliability in metal cutting. This horizontal band saw is built with solid, heavy-duty construction to ensure precision and longevity in high-production environments such as primary metal centers and parts production plants. It features a maximum cutting capacity of 11-75 inches by 11 inches (300mm x 280mm) for rectangular material and an 11-inch (280mm) round capacity.

Operation is managed by an intuitive PLC digital control panel with a multi-lingual touch screen interface, allowing operators to easily store up to 20 unique jobs and switch between imperial or metric units. The machine is optimized for performance with a 5 HP band drive motor, an infinite band speed controlled by a variable frequency drive, and hydraulic blade tensioning for maximum cutting rates and band life. Material handling is precise, utilizing a hydraulic retractable shuttle vice indexer with rapid and creep speed control and a magnetic scale for indexer accuracy. A unique multi-step full stroke vise with split front vise clamps on both sides of the blade to reduce vibration and remnant length. Standard equipment includes an adjustable speed auger design, chip conveyor, and coolant-through carbide-faced saw guide inserts to ensure straighter cuts and longer blade life.

Description

The DoALL DC-280NC Continental Series is a high-production, fully-automatic horizontal band saw featuring a robust, heavy-duty construction for cutting a wide range of metals. With a maximum capacity of 11-75 inches by 11 inches and PLC digital control capable of storing 20 jobs, the DC-280NC is an affordable and robust choice for demanding, high-volume production applications like aerospace and automotive, prioritizing maximum ROI.

Machine Capacity: w 11.75” x h 11″ (300mm x 280mm)
Production Level: High
Machine Capacity: Round 11″ (280mm)
