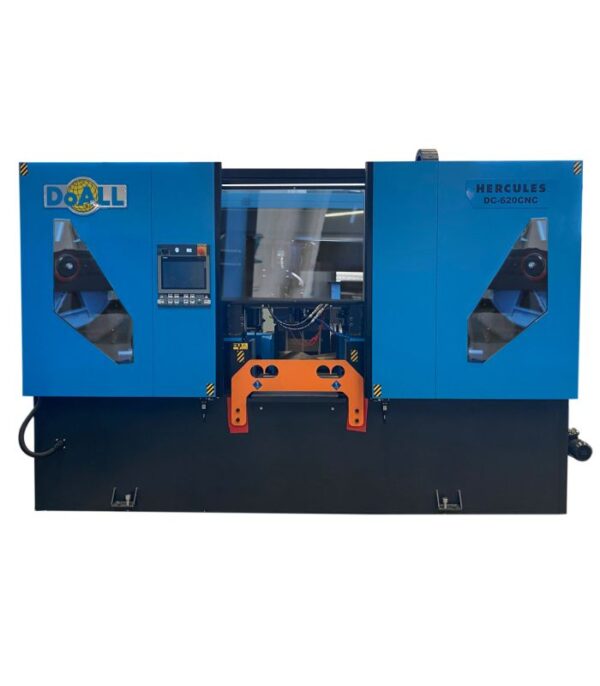

The DC-620CNC Hercules II™ is DoALL’s highly efficient, fully automatic production band saw designed for extreme production levels in demanding industrial sectors like automotive and aerospace. At the core of its precision is a heavy-duty dual-column structure and a sophisticated control system. Power is supplied by a 20 HP motor, while material indexing and saw head descent are managed by a linear-leading Ball Screw and Servo Motor system, ensuring exceptional accuracy and repeatability. The machine boasts a formidable cutting capacity of 24-5 inches wide and 21-5 inches high (620mm x 550mm).

The operation is streamlined by “SMART” Siemens digital controls with a touchscreen display, which offers an innovative feature: automatic selection of cutting parameters (feed rates and band speed) based on the material size and type. Standard features include an automatic material feed situated close to the blade, a worm chip conveyor for effective chip removal, a hydraulic blade clamping system, and an automatic guide arm setting. Safety is enhanced by the machine’s heavy-duty enclosed design, making the DC-620CNC a durable, precise, and highly efficient solution for severe production cutting requirements.
