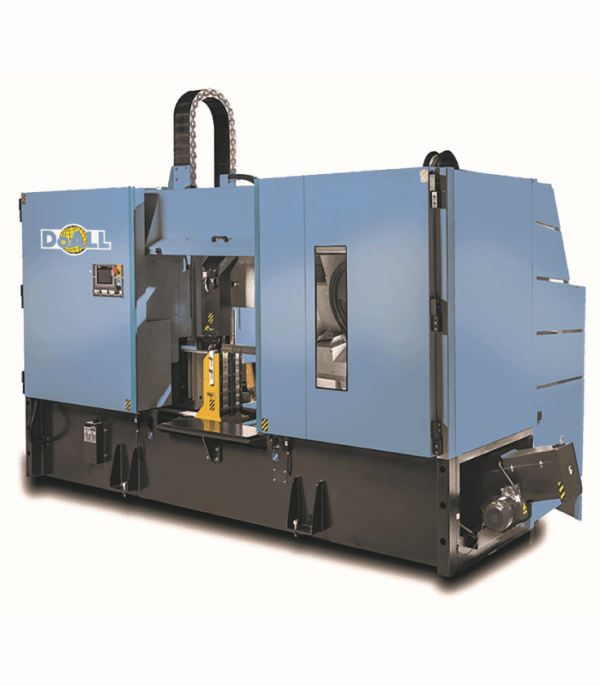

DC-750CNC – Dual Column Enclosed CNC Band Saw

The DC-750CNC Hercules is a robust and powerful Industrial Horizontal Band Saw from DoALL, setting the standard for extreme production sawing with its fully automated CNC capabilities. The machine boasts a formidable cutting capacity of 28 inches for round stock and 28 inches x 30 inches for rectangular material, making it ideal for processing large billets and structural sections. Its signature Dual Column design ensures exceptional rigidity and stability during the cut, which, combined with a powerful 15 HP ball screw driven band drive, guarantees straight, accurate cuts and superior blade life.

All machine functions are hydraulically controlled, including material indexing and feed, allowing for seamless, fully-automatic operations. The system is managed by advanced Siemens digital controls with a touchscreen display, which, once programmed, allows the operator to simply monitor the progress. Safety is paramount, as the entire Hercules line is fully enclosed to protect the facility and operator. Standard features that boost efficiency include automatic material retraction, dual-acting index vise jaws for crooked stock, variable vise pressure control, and a chain chip conveyor, all designed to deliver the lowest possible cost per cut in a high-volume manufacturing environment.

Description

The DC-750CNC Hercules is a fully-automatic, enclosed Dual Column Horizontal CNC Band Saw designed for extreme production levels. Featuring a massive 28″ x 30″ (700 x 750mm) capacity and a 15 HP ball screw driven band drive, this machine is built for cutting large solids and tubing with speed and precision. Its fully enclosed design enhances safety, while the Siemens digital controls and hydraulic operations ensure maximum performance and minimal operator intervention.

Machine Capacity: w 28” x h 30″ (700 x 750mm)
Machine Capacity Round: Tube or Solid – 28″ (700mm)
Production Level: Extreme

Standard Features: Variable Vise Pressure, Fully-Automatic Siemens Digital Controls, and Automatic Material Retraction
