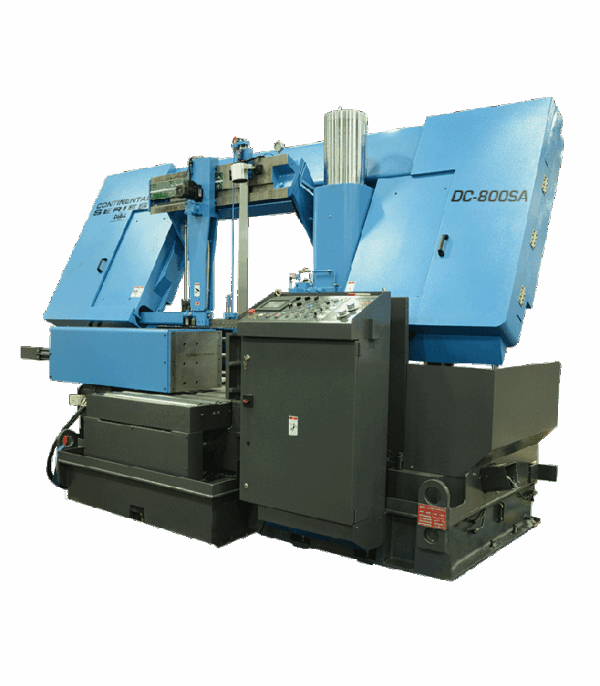

The DC-800SA Semi-Automatic Band Saw, part of DoALL’s high-production Continental Series, is a robust horizontal machine built for reliable and long-lasting performance in cutting large workpieces. It boasts a maximum rectangular capacity of 39-5 inches by 31-5 inches and a round capacity of 31-5 inches. The machine’s core is its Dual-Column horizontal design, which ensures superior rigidity, minimal vibration, and extreme cutting accuracy. Powering the cut is a 15 HP Band Drive Motor with an infinite band speed controlled by a variable frequency drive, ranging from 52 to 275 fpm.

Key operational features include a Hydraulic Shuttle Roller Table for assisting the operator in material positioning with rapid and creep speed control, significantly decreasing setup time. All machine functions are managed by a Programmable Logic Controller (PLC). Once the operator sets the initial vise opening, feed rate, and blade speed, the cut cycle is completed, the band shuts off, and the head returns to the open position, ready for the next manual material repositioning. The saw ensures cut quality and blade life with hydraulic band tensioning, zero-clearance, coolant-through carbide-faced saw guide inserts, and an electric motor-driven movable guide arm. Furthermore, its efficiently designed hydraulic system runs quieter, aiding in longer component life, and the auger-design chip conveyor helps drain coolant for cleaner extraction. The DC-800SA is an affordable, durable choice for high-volume operations that do not require full automatic indexing.
