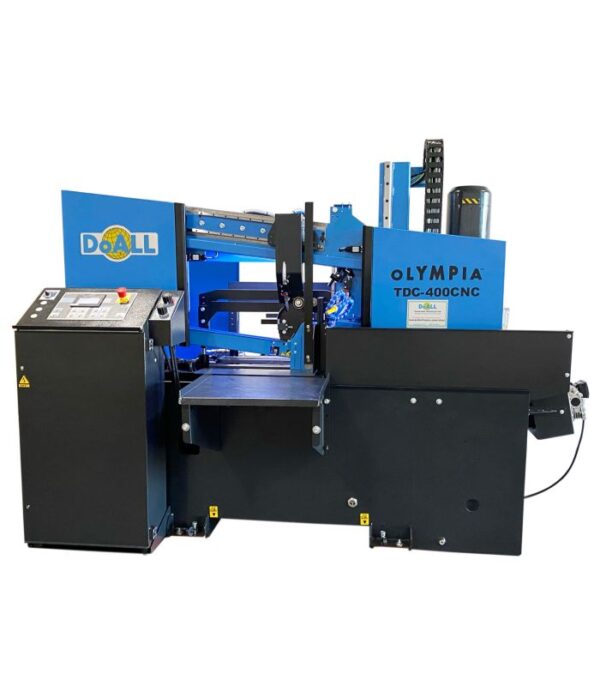

The DoALL TDC-400CNC Dual Column CNC Tube Band Saw is a highly efficient, hydraulically controlled machine engineered for extreme production levels, making it an excellent choice for primary metal centers, piping contractors, and the oil and gas industry. The machine’s core is a robust Dual Column design that ensures maximum head stability and precision, mounted on linear rails. Crucially, the saw head features a 7-degree cant design, meaning the blade is sloped toward the cutting table. This angle significantly improves blade life and cutting performance when working with both full materials and profiles, such as tubes and pipes.

The TDC-400CNC is fully automated and equipped with a programmable Mitsubishi touch screen controller that manages all machine functions, including an automatic cycle that allows operators to write and save up to 20 programs with 15 different part lengths. The machine features multiple material feed support with nesting fixtures and a floating indexer that uses a hydraulic system and DRO for accurate, repeatable positioning, while also allowing for lateral movement to clear crooked stock. Cutting parameters are finely tuned with a feed rate-feed force saw head control and an automatic overfeed protection (BRP) function. Other high-end features include a hydraulic blade tensioning system, vertical hold downs, and variable vise pressure to minimize material movement and tooth strippage during high-rate production.
