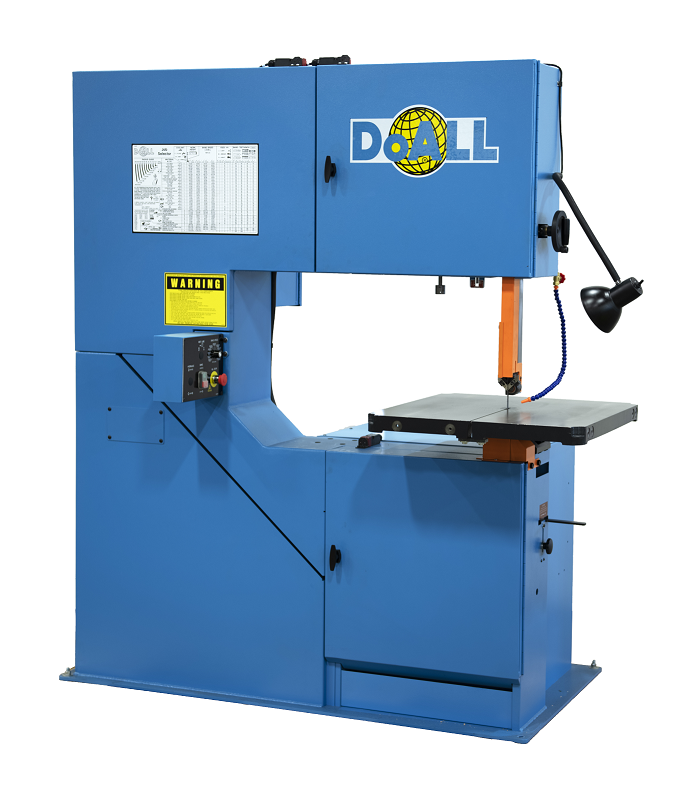

The DoALL 3613-V5 is an upright, high-speed vertical contour band saw designed for intermediate production operations that process a large variety of materials in a single production day, including ferrous and non-ferrous metals, plastics, and wood. It achieves exceptional performance, especially in non-ferrous applications like aluminum production, with variable band speeds ranging from 550 to an impressive 5,500 fpm. This speed is powered by a 5 HP variable frequency AC inverter drive motor that includes a gear-driven transmission to deliver maximum torque and prevent blade stalls.

The saw offers substantial capacity with a 36-inch throat depth and 13-inch maximum work height, supported by a heavy-duty steel frame and a large 26 x 26-inch tilting table (45 degrees right, 10 degrees left). Safety and longevity are prioritized with features like dynamic braking, which rapidly stops the blade upon power shut-off to reduce material kickback and operator injury. Furthermore, the variable frequency drive slowly starts the motion to reduce mechanical shock and prolong machine life. Operator convenience is ensured with column-mounted controls, a manual band tension indicator, and a post-elevating handwheel for precise guide block positioning. The 3613-V5 is a reliable, versatile machine for shops demanding the best finished products.
