Fixed Spindle Horizontal Machining Centers

40″ x 20″ x 20″

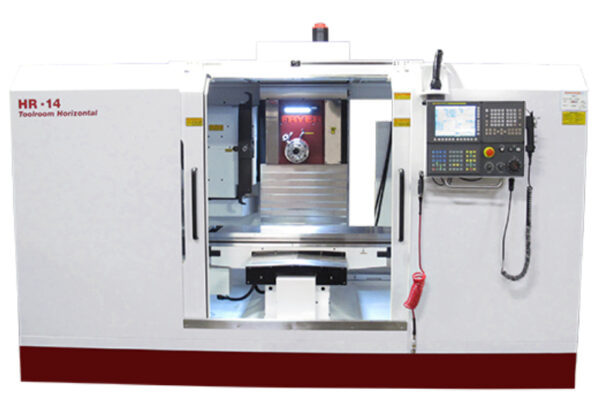

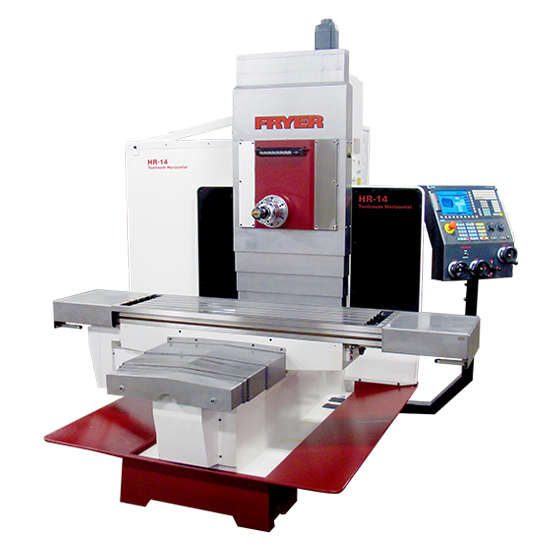

The Fryer HR Series is a high-performance box-way horizontal machining center designed for your most demanding applications. The high-torque 40 HP spindle motor and 6,000 RPM 50 taper spindle provide rigidity and torque (except HR-14). Extra-large castings, ballscrews, and bearings provide accuracy and vibration dampening. The user-friendly Fryer – Siemens CNC allows shop floor programming for single-piece runs or G-code programming for high production.

X Axis Travel 40″
Y Axis Travel 20″
Z axis Travel 20″
Table Size 16″ x 54″
Table Load (Evenly Distributed) 3,500 lbs.

FEATURES

• 24, 40, or 60 tool arm-type ATC
• 50 taper 6,000, 8,000 or 10,000 RPM spindle
• 40 taper 8,000 RPM spindle (HR-14 only)
• High torque 40 HP spindle motor
• Built-in contouring rotary table option
• Semi or full guarding for easy loading
• High-pressure coolant thru the spindle

PRODUCTIVITY

• Built-in rotary table allows multi-sided machining
• Simple menu programming
• Fast set-up keys and manual operation
• Excellent for small lots
• Easy access for large part loading
• Available coolant thru the spindle
