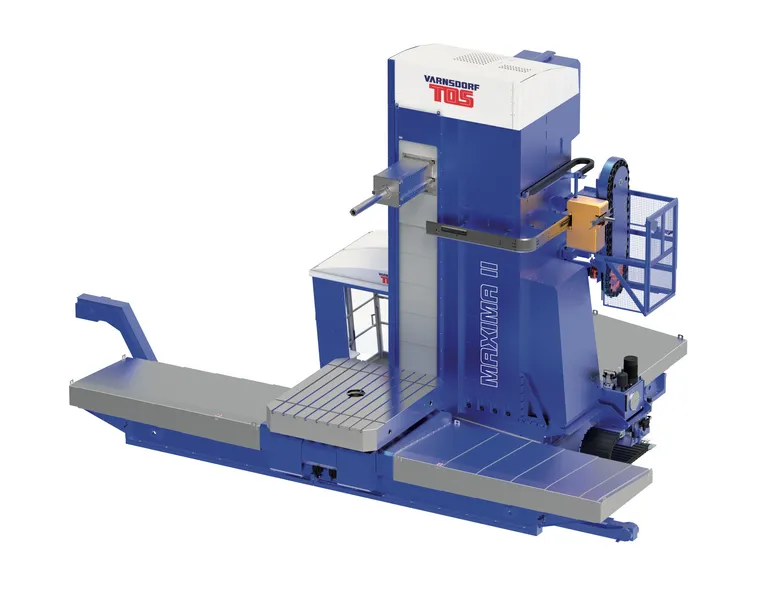

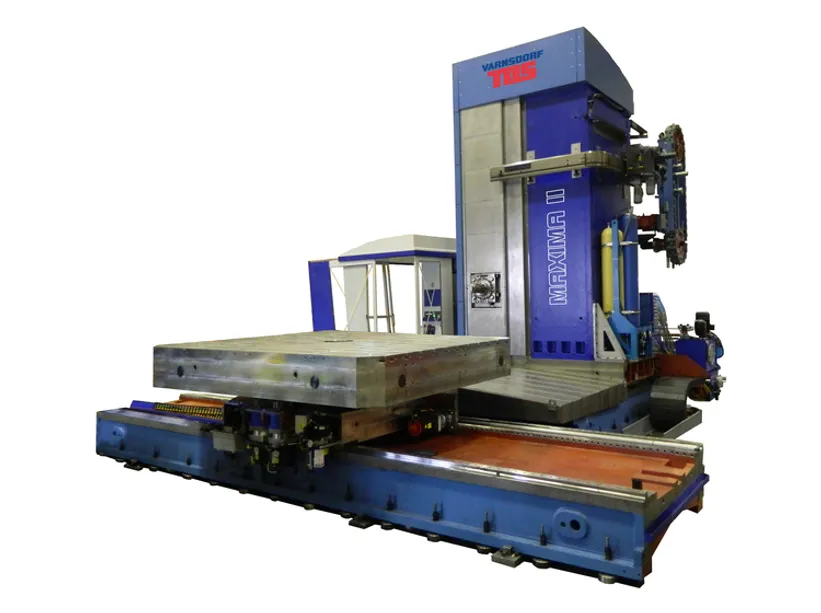

The horizontal table-type boring machines MAXIMA I/II are another representative of the CNC generation of TOS VARNSDORF machines, which excel in the top level of performance parameters and user comfort based on a technically advanced concept and a broad offer of variants and user functions. The structure of the machine is based on structural groups of the WRD machines, which are arranged in a cross-mounting of the table-type machines. The MAXIMA boring machines are characterized by a modern technical design of the structure and a high level of performance. The MAXIMA machines are equipped with a traveling RAM and a work spindle. The machine can be supplemented with a series of technological devices, which greatly extend the machine’s potentialities.

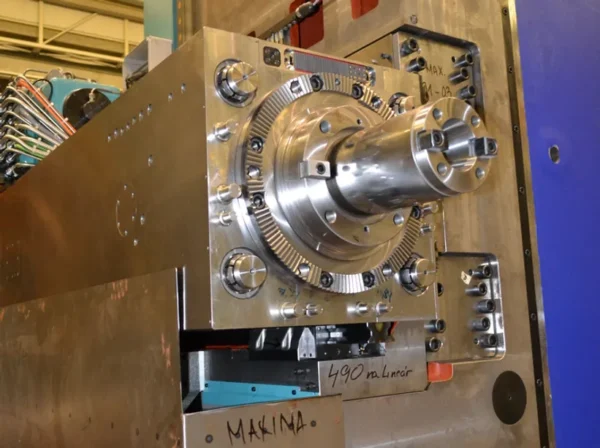

• Work Spindle Diameter: 130mm (5.11″) / 150mm (5.9″) / 160mm (6.3″)
• Spindle Speed Range: 10-3,000 RPM / 10-2,500 RPM(opt. 2,800) / 10-2,400 RPM

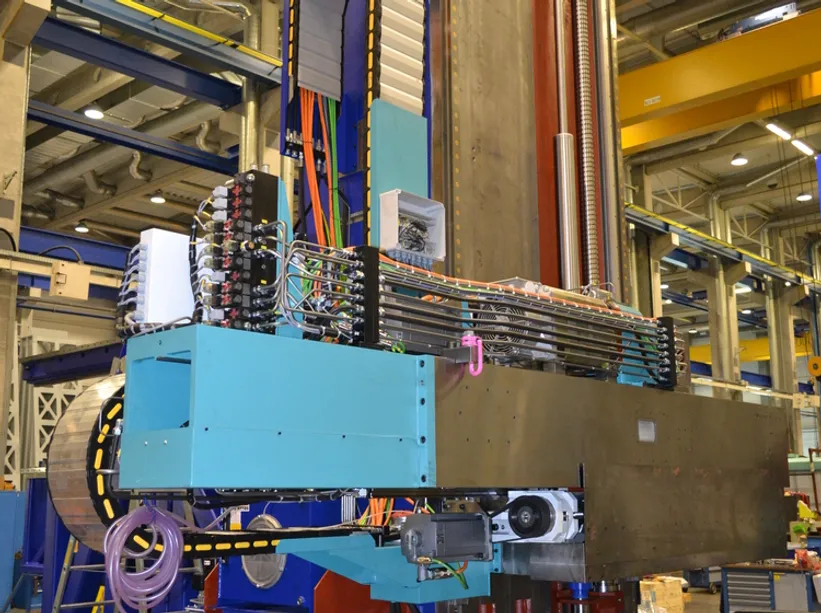

• RAM Size: 450 x 450mm (17.7 x 17.7″)

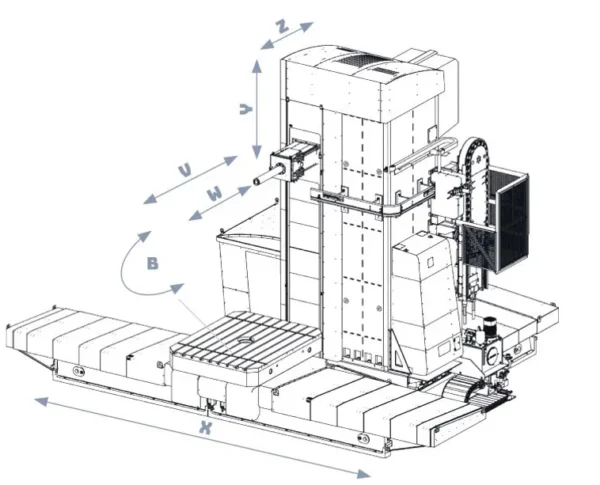

• RAM Stroke V Travel: 1,200mm (47.2″)
• X Travel-Table Traverse: 3,500 / 4,000 / 5,000 / 6,000mm* (137″ / 157″ 196″ / 236″)
• Y Travel-Headstock Vertical Travel: 2,000 – 6,000mm (98″ – 236″) in increments of 500mm
• Z Travel- Longitudinal Column Travel: 1,500 / 2,000 / 2,500mm (59″ / 78″ / 98″)
• W Travel-Spindle Stroke: 700mm (27.6″) / 800mm (31.5″)
• Table Clamping Area: 2,000 x 2,000mm (78″ x 78″) / 2,500 x 2,500mm (78″ x 98″) / 3,000 x 3,000mm (118″ x 118″) / 3,000 x 3,500mm (118″ x 137″) / 3,000 x 4,000mm (118″ x 157″)
• Max Workpiece Weight: 30,000kg (66,138 lbs.) / 50,000kg (110,231 lbs.)
• Pallet Changer, Angle Plates, Clamping Cubes, Milling Heads, Facing Heads, Automatic Tool Changers, Pickup Stations for Automatic Exchange of Special Accessories, Etc
