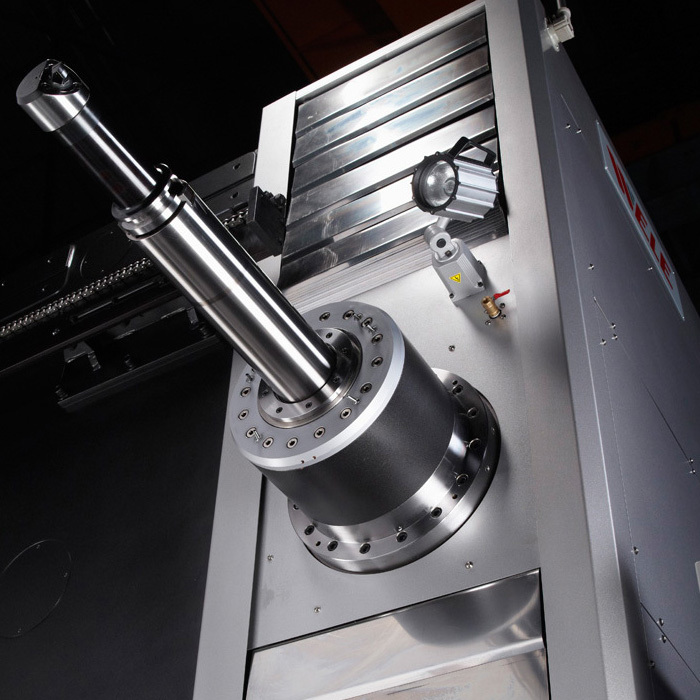

The HB1416 is a horizontal boring mill featuring a solid cast iron base, cylindrical roller guides, and backlash-free design on the B axis. The robust quill spindle provides stability for heavy-duty cutting, while the unique counterbalance system on the headstock ensures accuracy.
| Table Size | 56.7″ x 63″ (1,440 mm x 1,600 mm) |
| X-axis Travel | 78.7″ (2,000 mm) |
| Y-axis Travel (spindle head) | 70.9″ (1,800 mm) |
| Z-Axis Travel | 51.2″ (1,300 mm) |
| W-Axis Travel | 19.7″ (500 mm) |
| Maximum Table Load | 17,636 lb (8,000 kg) |
| Spindle Speed | 35 HP (26 kW) for 30 min. / 30 HP (22 kW) cont. |
| Spindle Torque | 876 ft-lb (1,188 Nm) |
| Spindle Taper | CAT50 |
| Spindle Nose | 3,500 RPM |
| Spindle Type | Geared head |
| Rapid Feedrate (X and Z axes) | 590 ipm (15 m/min) |
| Rapid Feedrate (X,Y and Z) | 472 ipm (12 m/min) |
| Rapid Feedrate (W-axis) | 197 ipm (5 m/min) |
| Rapid Feedrate (B-axis) | .8 RPM |
| Rapid feedrate – X axis | 40 Standard (60, 90 Optional) |
| Rapid feedrate – Y axis | 256″ x 248″ x 163″ (6,500 mm x 6,292 mm x 4,136 mm) |
| Cutting feedrate | 79,200 lb (36,000 kg) |
The HB1416 is a horizontal boring mill featuring a solid cast iron base, cylindrical roller guides, and a backlash-free design on the B axis. The robust quill spindle provides stability for heavy-duty cutting, while the unique counterbalance system on the headstock ensures accuracy.
