WHN 13/15 CNC

The WHN 13-15 CNC is a highly successful and versatile horizontal milling and boring machine from TOS VARNSDORF, designed for precise line-coordinate drilling, boring, milling, and thread cutting on large box-type, board-type, and complicated workpieces made of cast-iron or steel. With nearly 2,800 units sold since its introduction in 1968, this machine offers an excellent balance of high capacity and low purchasing cost. Its robust structure provides guaranteed high rigidity and reliable performance, supporting a maximum workpiece weight of up to 25,000 kg (55,115 lbs). The machine is available with work spindle diameters of 130mm or 150mm and extensive travel options, including X-axis table traverse up to 6,000mm (236 inches) and Y-axis vertical travel up to 3,500mm. The WHN 13-15 CNC can be significantly expanded with a broad range of technological accessories such as automatic tool changers, pallet changers, and various milling and facing heads, making it an essential universal machine tool for heavy-duty metalworking.

ADD TO QUOTE
Categories: , , , , Tags: , , , , , , , , , , Brand: ,

Description

The TOS VARNSDORF WHN 13-15 CNC is the company’s most successful universal horizontal milling and boring machine, excelling in the precise machining of heavy workpieces up to 25,000 kg. Its robust structure guarantees high rigidity and reliability for demanding milling, drilling, boring, and thread cutting operations.

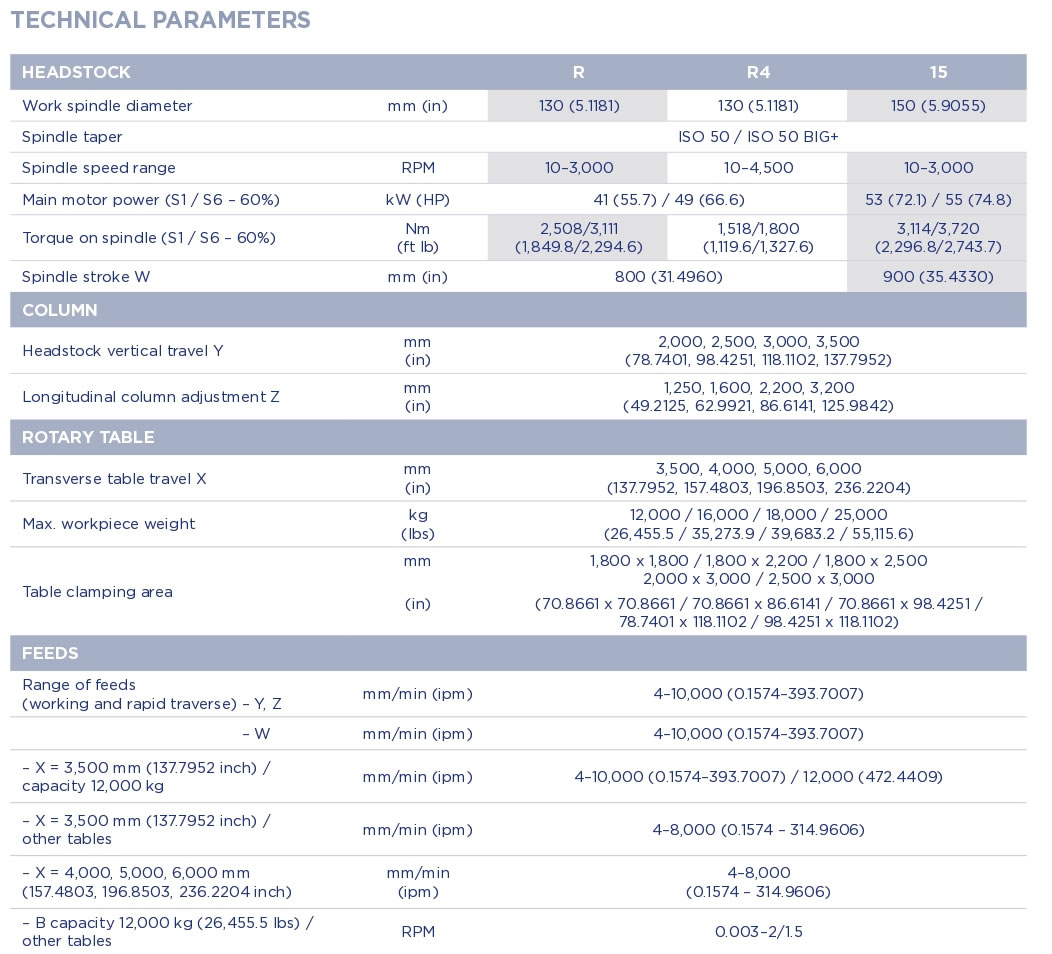

  • Work Spindle Diameter: 130mm (5.11″) / 150mm (5.9″)
  • Spindle Speed Range: 10-3,000 RPM / (Optional 10-4,500 RPM on WHN 13)
  • X Travel-Table Traverse: 3,500 / 4,000 / 5,000 / 6,000mm (137″ / 157″ 196″ / 236″)
  • Y Travel-Headstock Vertical Travel: 2,000 / 2,500 / 3,000 / 3,500mm (78″ / 98″ / 118″ / 137″)
  • Z Travel- Longitudinal Column Travel: 1,250 / 1,600 / 2,200 / 3,200mm (49″ / 63″ / 86″ / 126″)
  • W Travel-Spindle Stroke: 800mm (31.5″) / 900mm (35.4″)
  • Table Clamping Area: 1,800 x 1,800mm (70″ x 70″) / 1,800 x 2,220mm (70″ x 86″) / 1,800 x 2,500mm (70″ x 98″) / 2,000 x 3,000mm (78″ x 118″) / 2,500 x 3,000mm (98″ x 118″)
  • Max Workpiece Weight: 12,000kg (26,455 lbs.) / 25,000kg (55,115 lbs.)
  • Pallet Changer, Angle Plates, Clamping Cubes, Milling Heads, Facing Heads, Automatic Tool Changers, Pickup Stations for Automatic Exchange of Special Accessories, Etc
