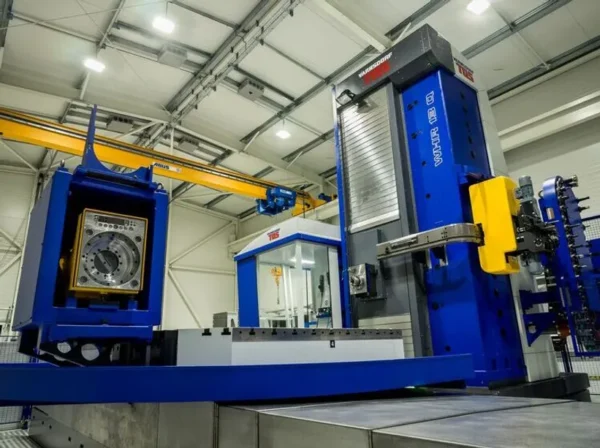

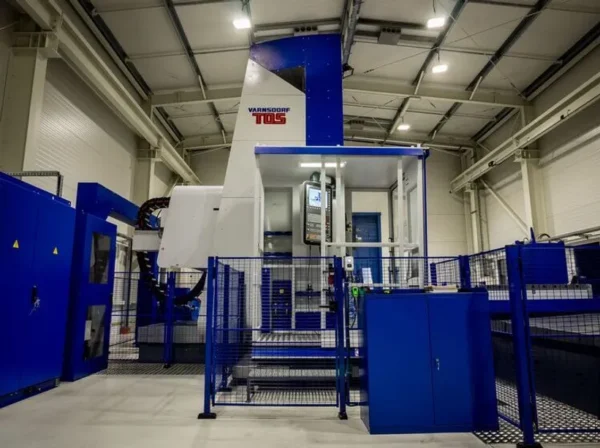

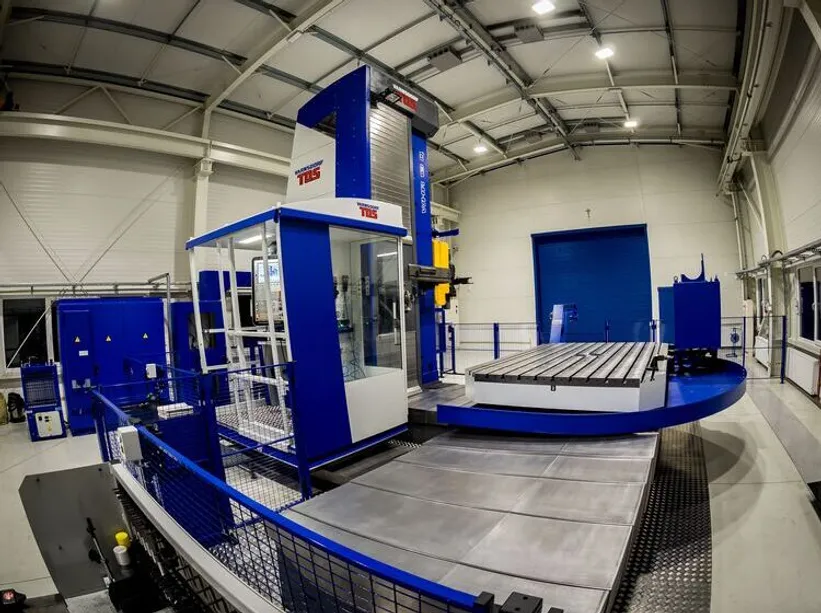

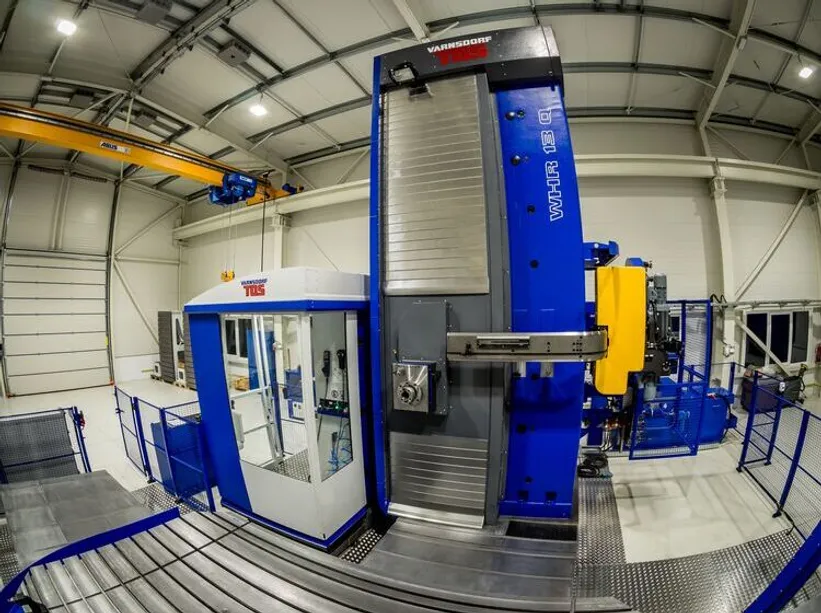

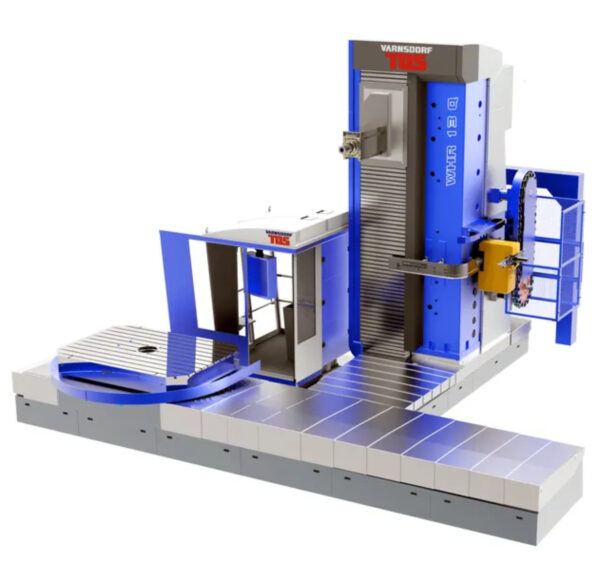

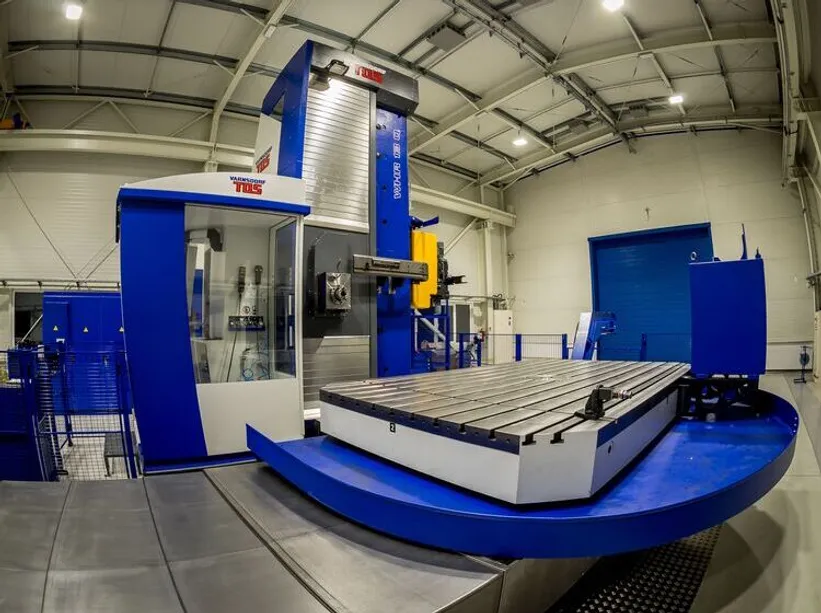

The latest representative of horizontal table-type boring machines WHR 13 produce by TOS VARNSDORF.

The WHR 13 has been developed from the most successful generation of table-type WHN 13 CNC machines, which have reached customers all around the world over the past few decades (more than 2,800 of all versions and types have been sold) and they are still popular and in high demand. The WHN 13 machines have become through their unique properties, reliability and power parameters a standard for all machines in this category. The horizontal boring machine WHR 13 takes the best from its predecessor and, using the most modern technology, represents another step forward in its class.

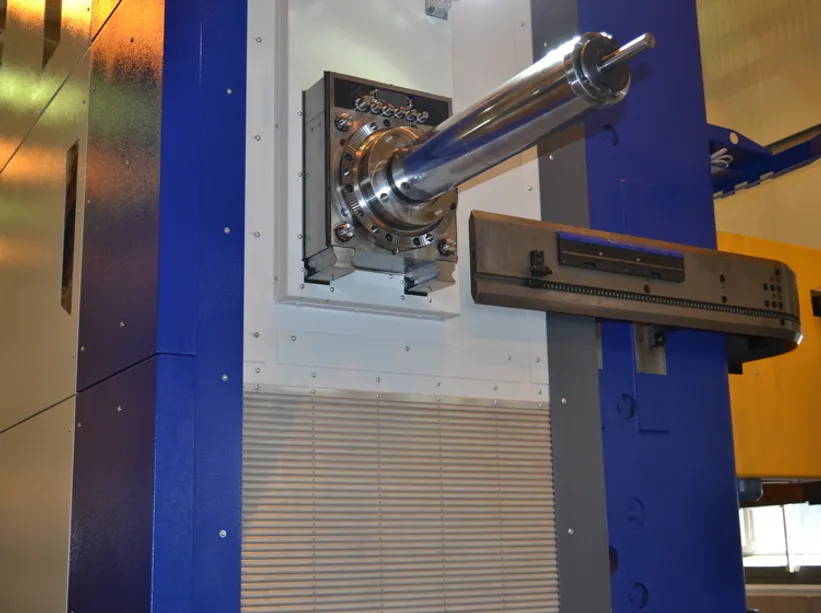

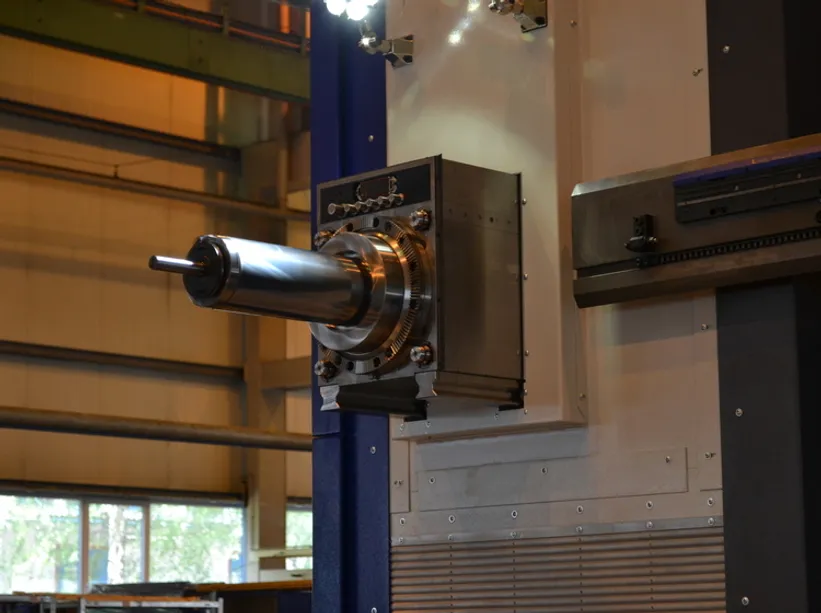

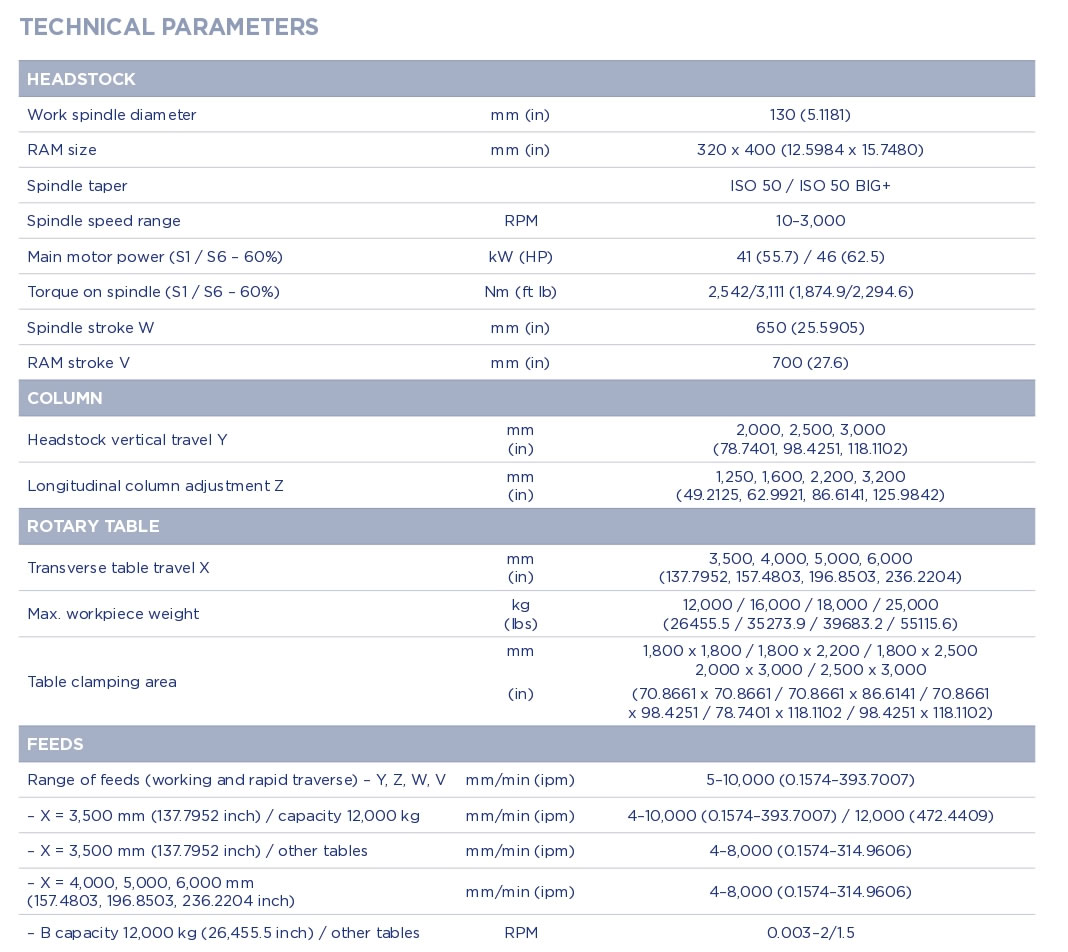

• Work Spindle Diameter: 130mm (5.11″)

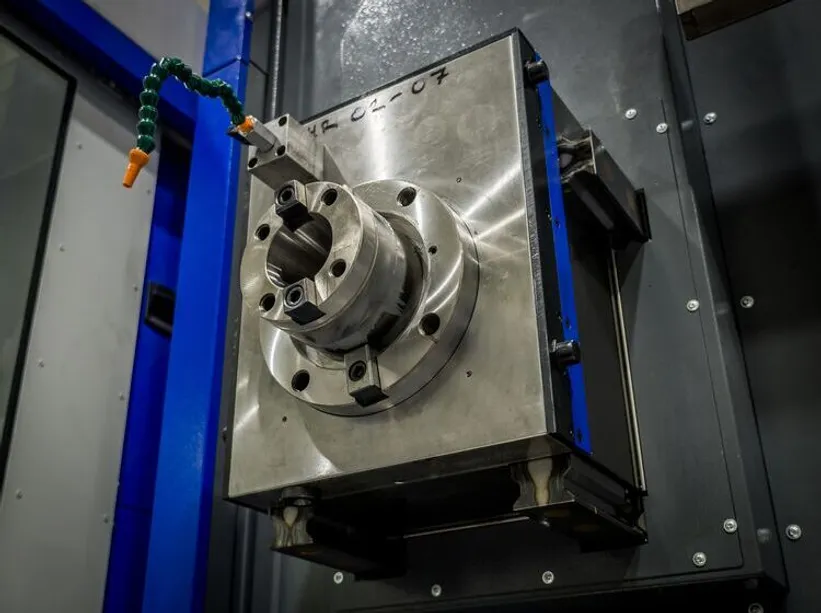

• RAM Size: 320 x 400mm (12.6″ x 15.7″)
• RAM Stroke V Travel: 700mm (27.6″)
• Spindle Speed Range: 10-3,000 RPM

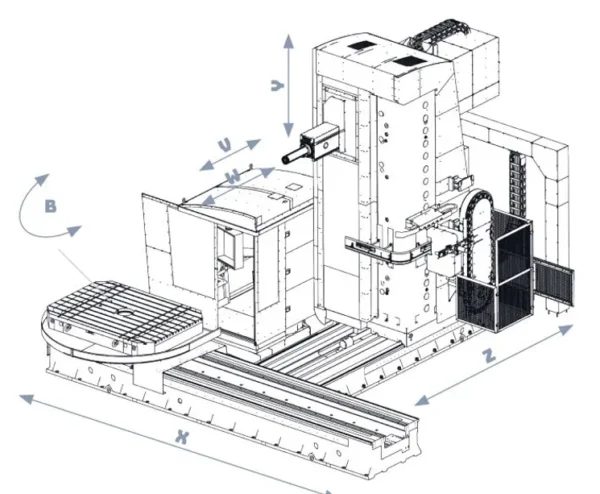

• X Travel-Table Traverse: 3,500 / 4,000 / 5,000 / 6,000mm (137″ / 157″ 196″ / 236″)
• Y Travel-Headstock Vertical Travel: 2,000 / 2,500 / 3,000mm (78″ / 98″ / 118″)
• Z Travel- Longitudinal Column Travel: 1,250 / 1,600 / 2,200 / 3,200mm (49″ / 63″ / 86″ / 126″)
• W Travel-Spindle Stroke: 650mm (25.6″)
• Table Clamping Area: 1,800 x 1,800mm (70″ x 70″) / 1,800 x 2,220mm (70″ x 86″) / 1,800 x 2,500mm (70″ x 98″) / 2,000 x 3,000mm (78″ x 118″) / 2,500 x 3,000mm (98″ x 118″)
• Max Workpiece Weight: 12,000kg (26,455 lbs.) / 25,000kg (55,115 lbs.)

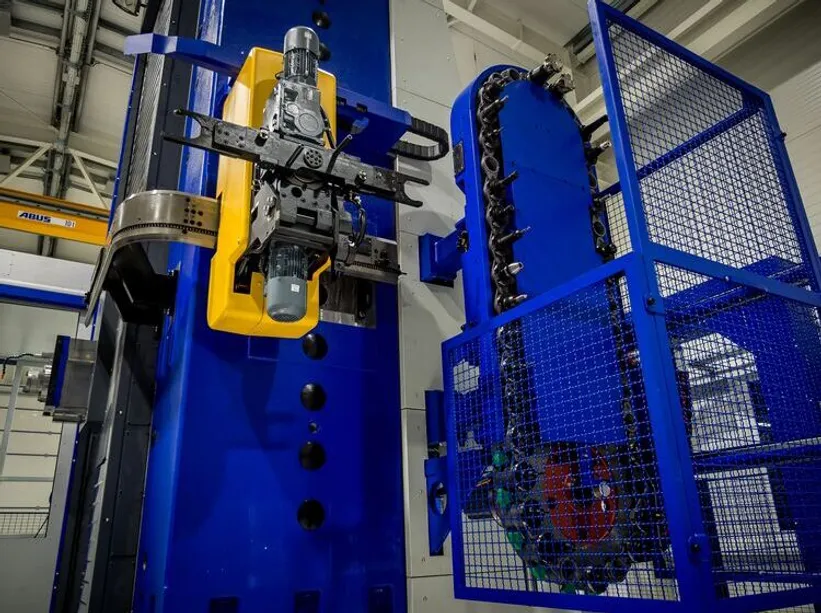

• Pallet Changer, Angle Plates, Clamping Cubes, Milling Heads, Facing Heads, Automatic Tool Changers, Pickup Stations for Automatic Exchange of Special Accessories, Etc
