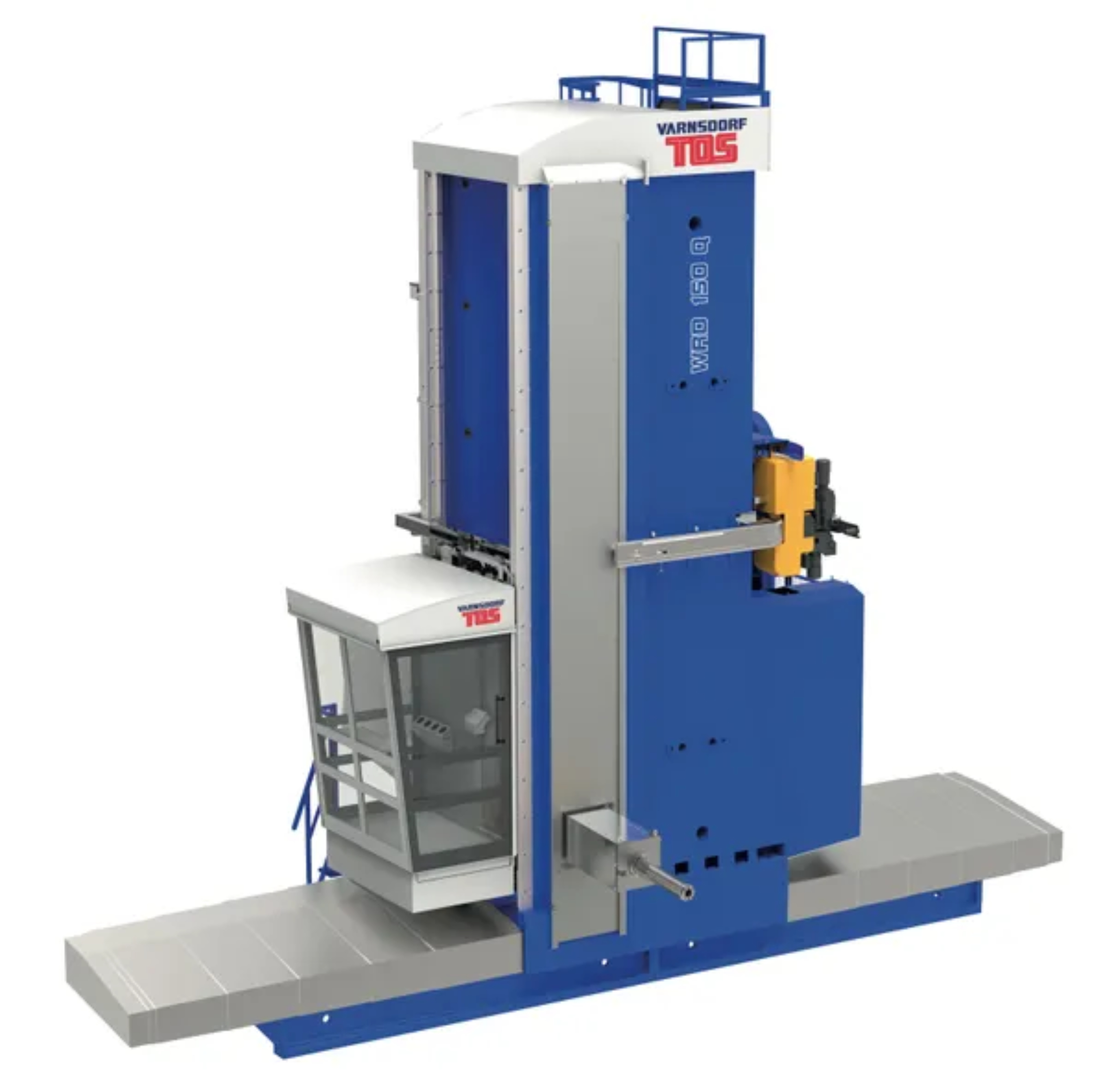

The floor-type boring machines are characterized by a modern technical design of the structure and a high level of performance. They can be supplemented with a number of technological devices, which can greatly extend the technological capabilities of the machine.

The machines are intended for precision and highly efficient coordinate boring, drilling, milling, and thread-cutting, particularly in the case of large-scale, heavy, and structurally difficult work-pieces made of cast iron, cast steel, and steel.

According to concrete process needs, the machines can be extended with a clamping field consisting of clamping plates or with one or more additional tables.

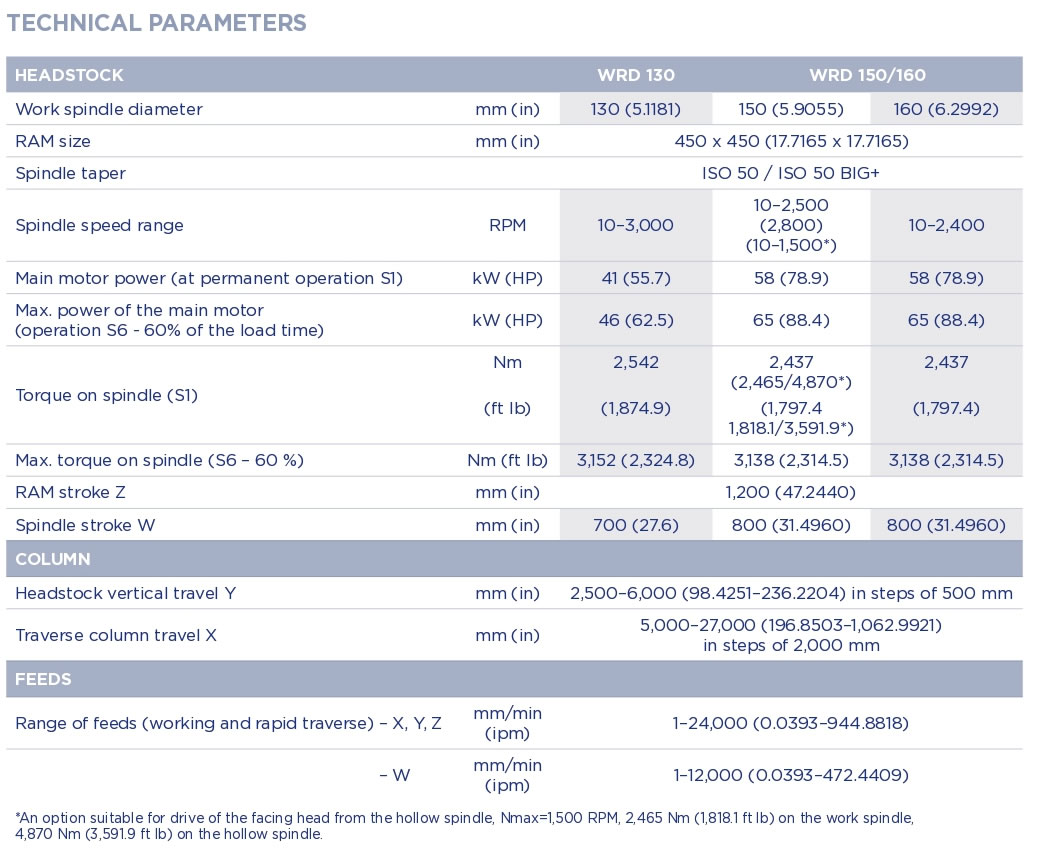

• Work Spindle Diameter: 130mm (5.11″) / 150mm (5.9″) / 160mm (6.3″)
• Spindle Speed Range: WRD 130- 3,000 RPM / WRD 150- 2,500 RPM (Opt. 2,800 & 1,500) / WRD 160- 2,400 RPM
• RAM Size: 450 x 450mm (17.7 x 17.7″)
• RAM Stroke Z Travel: 1,20mm (47.2″)
• X Travel-Column Traverse: 5,000- 29,000 Plus (196″ – 1,141) in 2,000mm increments
• Y Travel-Headstock Vertical Travel: 2,000 – 6,000mm (98″ – 236″) in increments of 500mm
• W Travel-Spindle Stroke: WRD 130 -700mm (27.6) / WRD 150- 800mm (31.5″) / WRD 160-800mm (31.5″)
• Optional Accessories: Rotary Tables, Floor Plates, Angle Plates, Clamping Cubes, Milling Heads, Facing Heads, Automatic Tool Changers, Pickup Stations for Automatic Exchange of Special Accessories, Etc.
