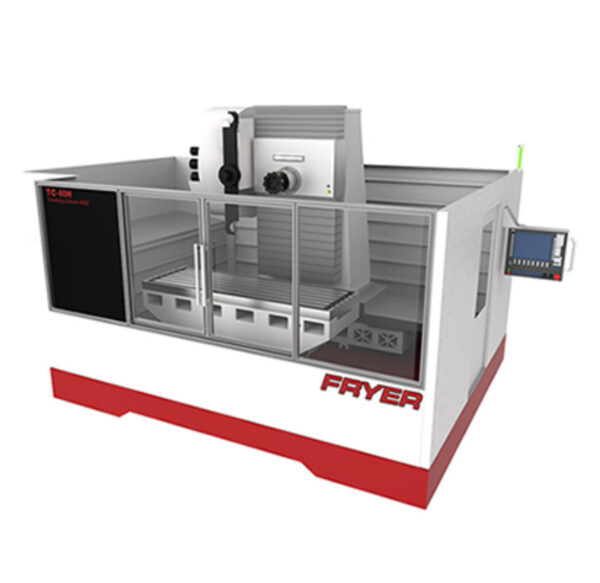

The Fryer TC-120H is a high-capacity model within the TC-H Series of Horizontal Traveling Column Machining Centers, specifically engineered for the precise and heavy-duty machining of extra-long components. Its fixed table design ensures maximum stability while the traveling column allows for extensive reach.

Key Specifications

• Traveling Column Design: Features a fixed table with high load capacity, while the column moves along the X-axis for expansive machining envelope.
• Travel (X/Y/Z): 120” x 24” (36” optional) x 24” (32” optional)
• Table Size: 120” x 24”
• Maximum Table Load: Over 10,000 lbs.
• Spindle: Rugged 40 taper (50 taper optional) horizontal spindle.
• Power: High-torque 30 HP spindle motor delivering 155 ft/lbs of torque.
• Speed: Fast 1,000 IPM rapid feedrate.
• Tooling: Comes with a 24 or 40 tool Automatic Tool Changer (ATC).

Features & Benefits

The TC-120H is built for performance and ease of use, featuring a fixed table that can handle massive workpieces exceeding 10,000 lbs. Its core benefit is the large 120-inch X-axis travel provided by the traveling column, ideal for rail, aerospace, or structural components. The machine is controlled by the intuitive Fryer / Siemens 828-HS CNC control, which supports simple menu programming and quick setup for efficient, low-volume production.
