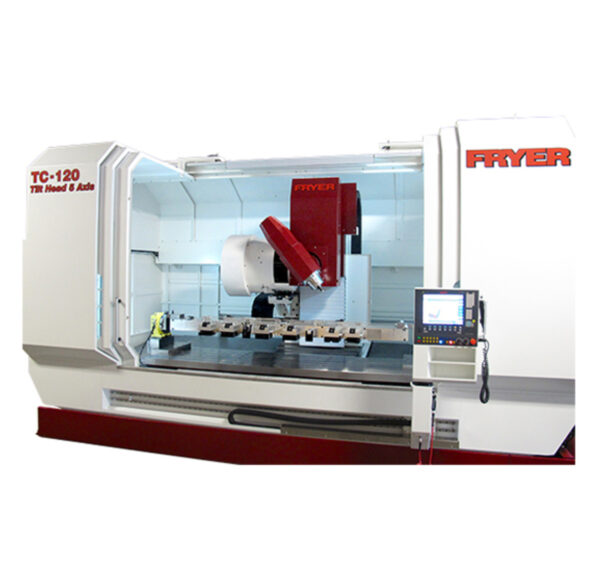

The Fryer TC-120V is a substantial model in the TC-V Series of Vertical Traveling Column Machining Centers, engineered to combine extensive X-axis reach with the high stability required for vertical milling operations on long, heavy components.

Key Specifications

• Traveling Column Design: Features a traveling column coupled with a fixed table, which ensures maximum stability for the workpiece during machining.
• Travel (X/Y/Z): 120” x 24” (32” optional) x 24” (32” optional)
• Maximum Table Load: Over 10,000 lbs.
• Spindle: High-torque vertical spindle, available in 40 or 50 taper, with options for a gearbox and Through-Spindle Coolant (CTS) for optimal cutting power.
• Speed: Fast 1,000 IPM rapid feedrate.
• Tooling: Equipped with a 24 tool arm type Automatic Tool Changer (ATC).

Features & Benefits

With 120 inches of X-axis travel, the TC-120V is perfectly suited for medium to large-scale structural and specialized components. The fixed table not only handles loads over 10,000 lbs but also supports productivity enhancements like dual-zone machining via table dividers or the addition of a built-in rotary table. Machine operation is simplified by the Fryer / Siemens 828-HS CNC control, which offers conversational and menu-driven programming to speed up setup, especially for complex, low-volume jobs.
