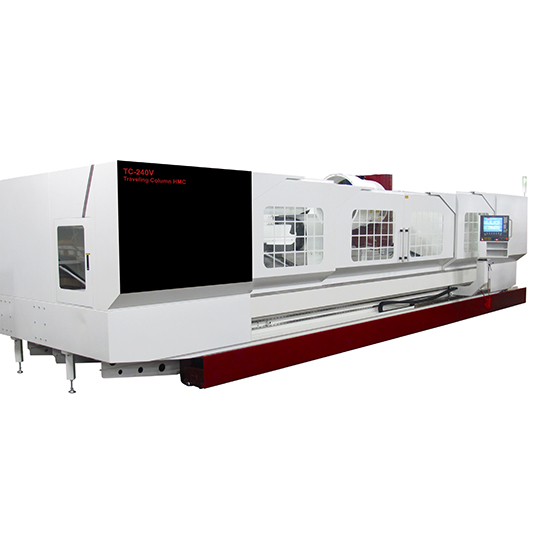

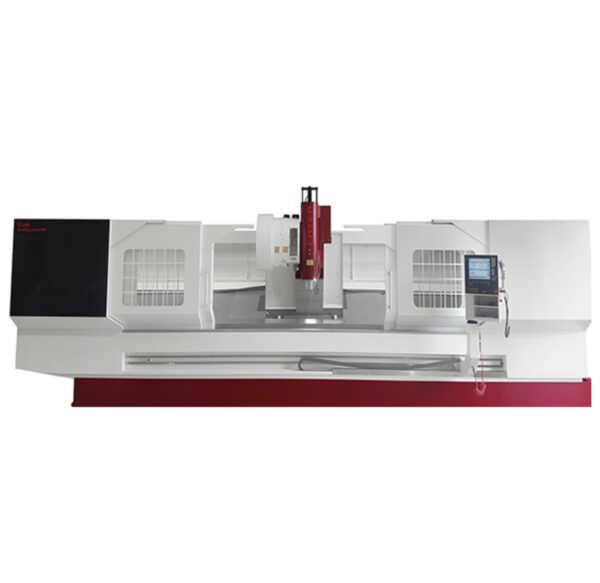

The Fryer TC-240V is a flagship model in the TC-V Series of Vertical Traveling Column Machining Centers, specifically engineered for ultra-long component machining with superior vertical stability and massive capacity. This machine is ideal for industries requiring extended reach and high precision on structural or specialized parts.

Key Specifications

• Traveling Column Design: Features a traveling column coupled with a fixed table, which delivers the extreme rigidity necessary for high-accuracy cuts across long distances.
• Travel (X/Y/Z): 240” x 24” (32” optional) x 24” (32” optional)
• Maximum Table Load: Over 10,000 lbs.
• Spindle: High-torque vertical spindle, available in 40 or 50 taper, with options for a gearbox and Through-Spindle Coolant (CTS).
• Speed: Fast 1,000 IPM rapid feedrate.
• Tooling: Equipped with a 24 tool arm type Automatic Tool Changer (ATC).

Features & Benefits

Boasting an immense 240 inches of X-axis travel, the TC-240V is designed to handle the longest components in a single setup. The robust fixed table ensures maximum stability for workpieces exceeding 10,000 lbs. To maximize uptime, it supports dual work zones via a table divider, allowing operators to load/unload while machining is in progress. The machine is controlled by the reliable Fryer / Siemens 828-HS CNC control, which simplifies complex programming with conversational and menu-driven features, improving overall productivity.
