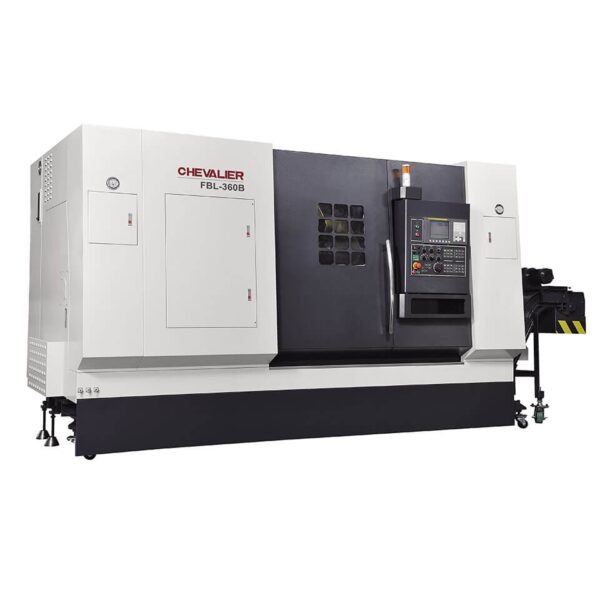

The CHEVALIER FBL 360 series stands as a robust platform within the Heavy-Duty Horizontal Turning Lathes category, specifically designed to handle challenging, large-diameter parts with precision and stability. The foundation of this machine is a 45-degree slant-bed structure that features a low center of gravity for easy operator access and rapid workpiece changeovers. Crucially, its construction utilizes Box Ways and a heavily ribbed Meehanite® casting, which provides strong support and excellent damping absorption, effectively reducing deflection and vibration during the most demanding cutting conditions.

Powering the FBL 360 is an impressive up to 50HP spindle motor with speeds up to 2,500 rpm, satisfying most heavy cutting requirements. The lathe offers a large capacity, with a swing over the bed of 30.3 inches (770 mm) and a maximum cutting diameter of 22.4 inches (570 mm). Versatility is key, with several configurations available:

1. Standard Models: Focused on high-torque, stable turning.

2. MC Models: Include the live tooling function with a BMT-75 turret, offering flexible machining capabilities to complete more complex workpieces like milling and drilling in a single setup.

3. L Models: The long bed design extends the maximum cutting length significantly, up to 79.7 inches (2,026 mm), making it ideal for long shafts and large parts.

The FBL 360 ensures high productivity with rapid traverse rates and a programmable hydraulic tailstock.
