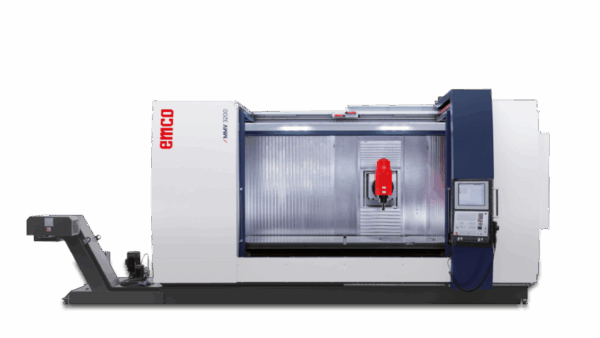

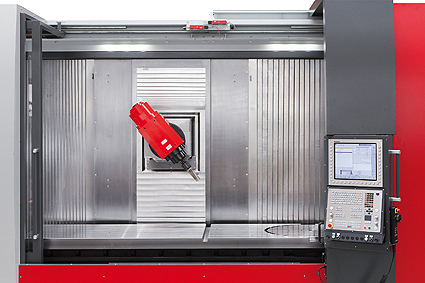

The EMCO Machining Center MMV 3200 is a highly efficient and rigid traveling column machine in the MMV series, designed for flexible 4- and 5-axis complete machining of medium-to-large and heavy workpieces in a single clamping setup.

Features & Benefits

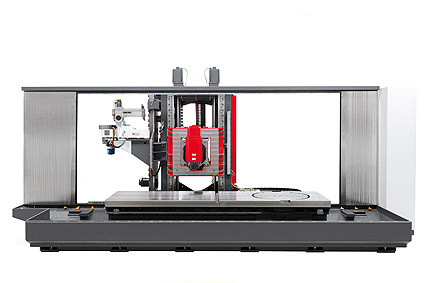

The MMV 3200 features a welded high-quality steel machine bed which guarantees essential rigidity and vibration damping necessary for optimal, stable machining conditions over time.

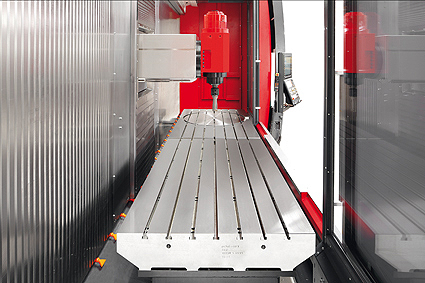

• Generous Machining Range: Offers 3200 mm of X-axis travel for processing long components, coupled with a fixed table capable of supporting up to 5000 kg for demanding applications.

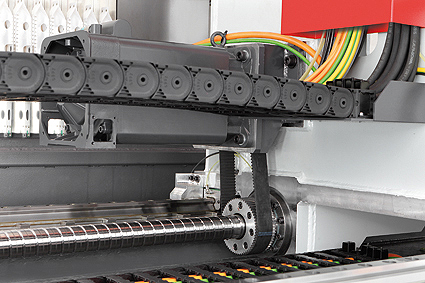

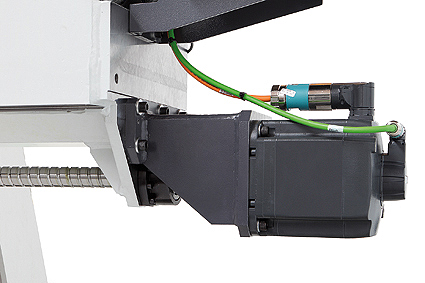

• High Dynamics and Precision: Motion is highly precise due to standard linear scales on the X-axis, direct-driven ball screws on the Y and Z-axes for precise and quiet operation, and the X-axis utilizing a rotating nut ball screw and fixed screw system.
• Powerful Spindle: Equipped with a liquid-cooled motor spindle (46 kW) that offers high power for heavy-duty cuts and high speeds (up to 18000 rpm) for finishing and HSC (High-Speed Cutting) operations.

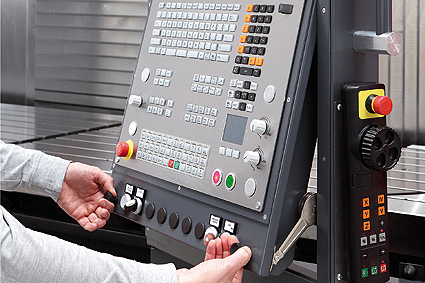

• Advanced Control Systems: Available with either the SIEMENS Sinumerik ONE (integrated with the EMCONNECT Digital Process Assistant for digital workflow management) or the HEIDENHAIN TNC 640 control, both optimized for complex 5-axis and Mill-Turn applications.
