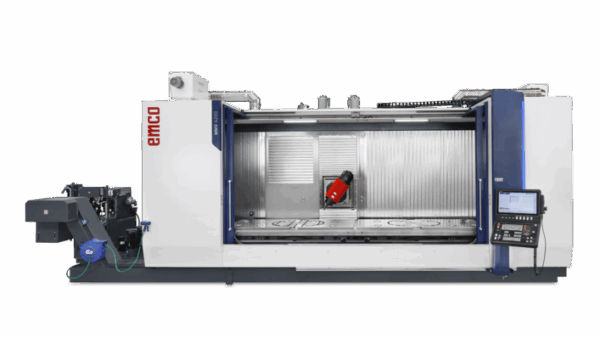

The EMCO Machining Center MMV 4200 is a robust and flexible traveling column machine in the MMV series, designed for highly precise 4- and 5-axis complete machining of large and heavy workpieces in a single clamping.

Features & Benefits

Built on a stable welded steel construction, the MMV 4200 delivers a high degree of rigidity and excellent vibration damping, ensuring maximum precision and superior surface quality.

• Extensive Machining Capacity: Offers 4200 mm of X-axis travel for long components, complemented by a table designed to securely hold loads up to 6000 kg.
• High Precision Motion: Features include linear scales standard on the three linear axes (X, Y, and Z) to guarantee positioning accuracy, a rack and pinion drive on the X-axis for precision and smoothness, and direct-driven ball screws on Y and Z for precise and quiet operation.
• Versatile Spindle: Equipped with a liquid-cooled, high-performance motor spindle suited for both heavy-duty machining and high-speed milling.
• State-of-the-Art Control: Comes standard with either the SIEMENS Sinumerik ONE (which includes the EMCONNECT Digital Process Assistant) or the HEIDENHAIN TNC 640 for advanced control and integrated digital functionality.
