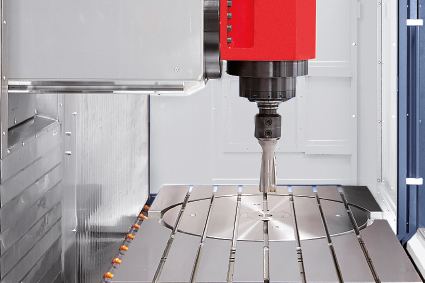

The EMCO Machining Center MMV 6200 is the ultimate capacity model in the MMV Traveling Column series, engineered for the 4- and 5-axis complete machining of exceptionally large and heavy components in a single clamping. It is designed to provide maximum precision and the highest surface qualities even when performing heavy-duty milling operations.

Features & Benefits

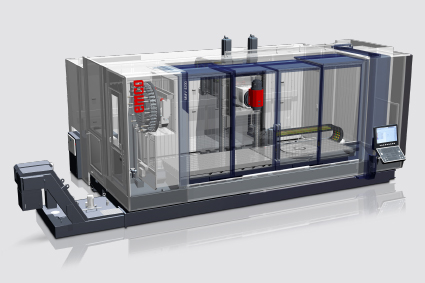

The MMV 6200 is characterized by its flexible modular construction and robust machine structure, built on a stable, structured welded steel construction that guarantees high rigidity and excellent vibration damping.

• Ultra-Long Machining: With 6200 mm of X-axis travel, it can machine the longest components in a single setup, eliminating costly repositioning.
• High Precision: Positioning accuracy is guaranteed by linear scales standard on the three linear axes (X, Y, and Z).

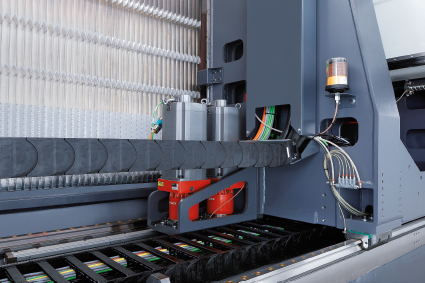

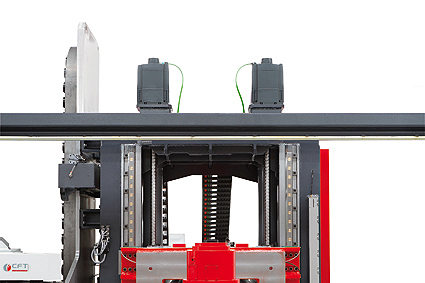

• Advanced Axis Drives: The X-axis is implemented with a rack and pinion drive for maximum precision, while the Y and Z-axes use direct-driven ball screws for precise and quiet operation.

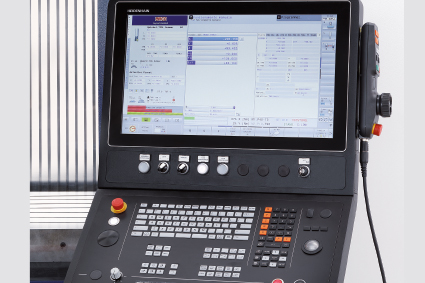

• Controlling Power: Available with either the SIEMENS Sinumerik ONE (which includes the EMCONNECT Digital Process Assistant) or the HEIDENHAIN TNC 640, both offering sophisticated control for Mill-Turn, HSC, and 5-axis operations.
