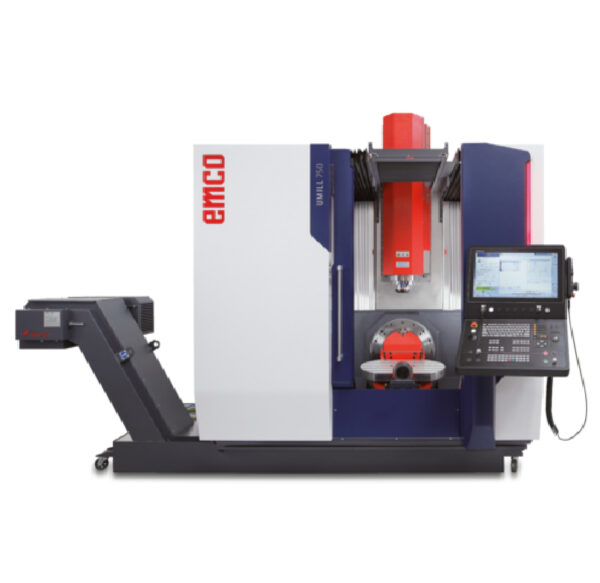

The EMCO Universal Machining Center UMILL 750 is a highly precise and dynamic milling machine designed for sophisticated 5-axis simultaneous machining. This compact Universal Milling Machine is built with a modern moving column concept, offering exceptional accessibility and efficiency for the machining of high-precision components.

Features & Benefits

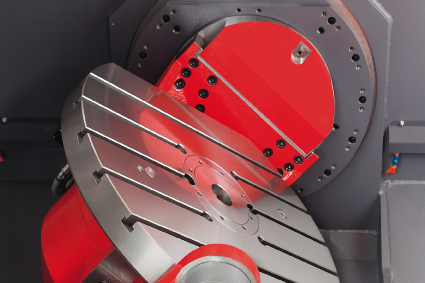

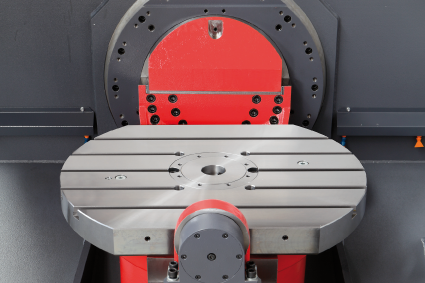

• 5-Axis Simultaneous Machining: Features a solid swivel-rotary table with a wide swiveling range of +/- 100° in the B-axis. This table utilizes torque motors and direct measuring systems to ensure top stability and precision during simultaneous 5-axis operations.

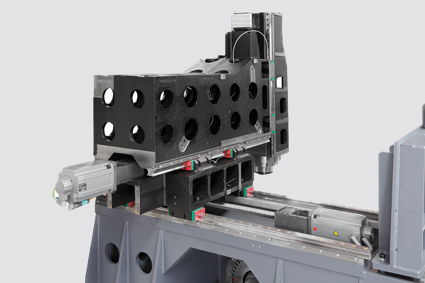

• High Dynamics: Achieves quick, efficient processing with rapid motion speeds of 50 m/min in all axes, supported by direct drives in the X and Y axes.
• Top Precision and Stability: The machine is engineered for top thermostability and high machining precision, with standard linear scales in the X, Y, and Z axes for accurate positioning.
• Optimal Accessibility: The moving column concept and smart design provide optimal access to the work area, streamlining workpiece setup and inspection.
• Advanced Control Technology: Equipped with cutting-edge control systems from either Siemens (Sinumerik ONE) or Heidenhain (TNC 640 HSCI). The Siemens version includes the EMCONNECT Digital Process Assistant for increased productivity and easy access to machine data.
• Optimal Chip Removal: Designed for efficient chip management, contributing to a cleaner working environment and consistent process quality
