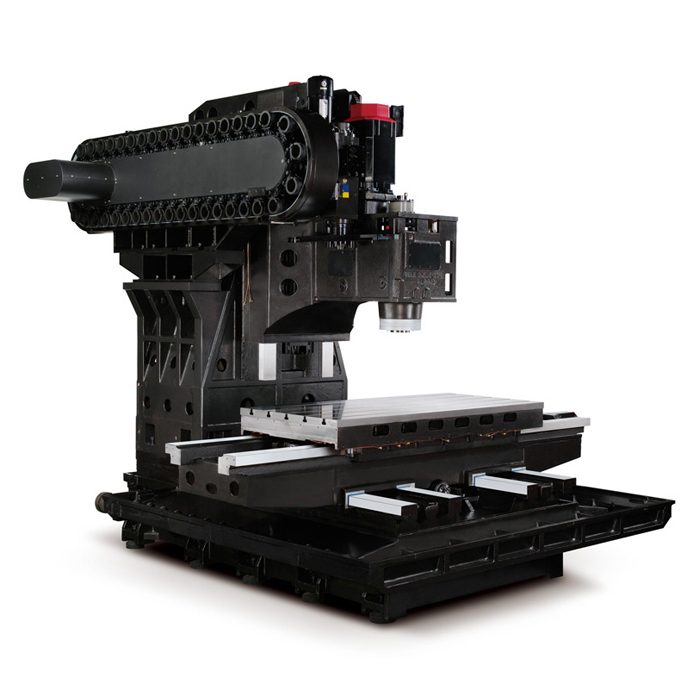

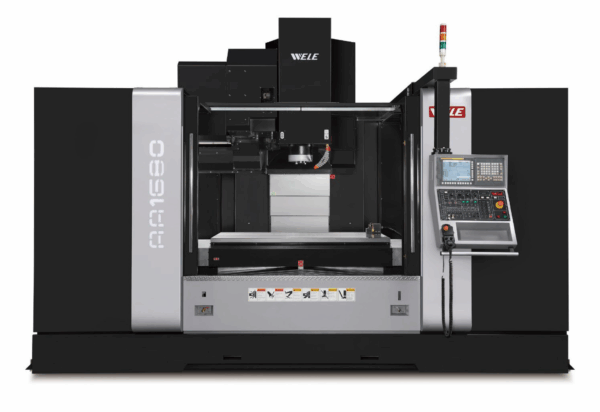

The AA1680 is an exceptionally robust model within the JTEKT Wele AA-80 Series of Vertical Machining Centers, engineered for production environments requiring maximum stability and powerful material removal. Its core structure features a massive Meehanite cast iron base and column, enhanced by the use of four box guideways on the Y-axis to ensure superior rigidity, dampening, and high load capacity. This heavy-duty construction minimizes vibration and deflection, which is critical for maintaining tight tolerances during demanding cuts on tough materials like stainless steel and titanium.

With a generously sized table of 68.9 inches by 31.5 inches (1,750 mm x 800 mm), the AA1680 accommodates large workpieces, utilizing a substantial travel envelope of 63 inches (1,600 mm) in X, 31.5 inches (800 mm) in Y, and 31.5 inches (800 mm) in Z. It features a robust CAT50 spindle with a maximum speed of 6,000 RPM, available in a geared head configuration for high-torque applications. The machine supports rapid traverse rates up to 945 ipm in the X and Y axes, ensuring quick, non-cutting movements. With an optional 40-tool storage capacity, the AA1680 is a fully-equipped solution for high-volume production of medium-to-large prismatic parts.
